Ai-Thinker AiPi-Eyes-S1 Development Board With (Microphone , Speaker and Touch Screen)

Ai-Thinker AiPi-Eyes-S1 Development Board With (Microphone , Speaker and Touch Screen)

The Ai-Thinker AiPi-Eyes-S1 is an advanced, open-source development board tailored for the Ai-M61-32S module, offering robust support for WiFi6 and BLE5.3 connectivity. This board is equipped with an extensive array of peripherals, including an SPI display interface, a DVP camera interface, and an ES8388 audio codec chip that supports dual microphones and speakers. It is designed to facilitate the development of multimedia, Internet of Things (IoT), and artificial intelligence (AI) applications.

Features

• Wireless Connectivity: Supports WiFi6 (802.11b/g/n/ax) and BLE5.3 for high-speed and reliable wireless communication.
• Core Module: Powered by the Ai-M61-32S module, featuring a 32-bit RISC-V CPU with a maximum frequency of 320MHz.

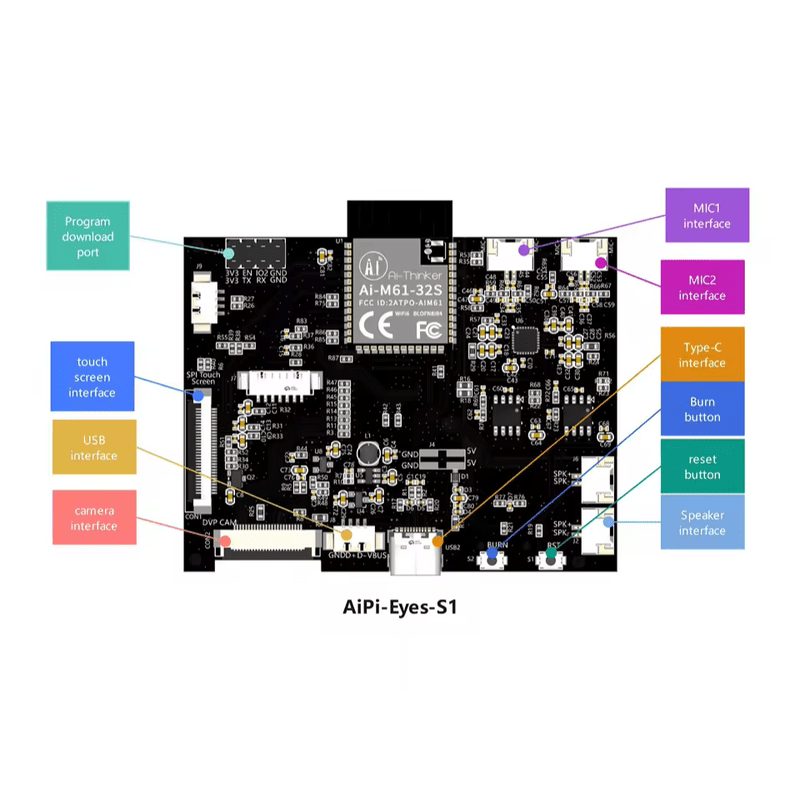

• Peripheral Interfaces: Includes DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO for versatile connectivity options.

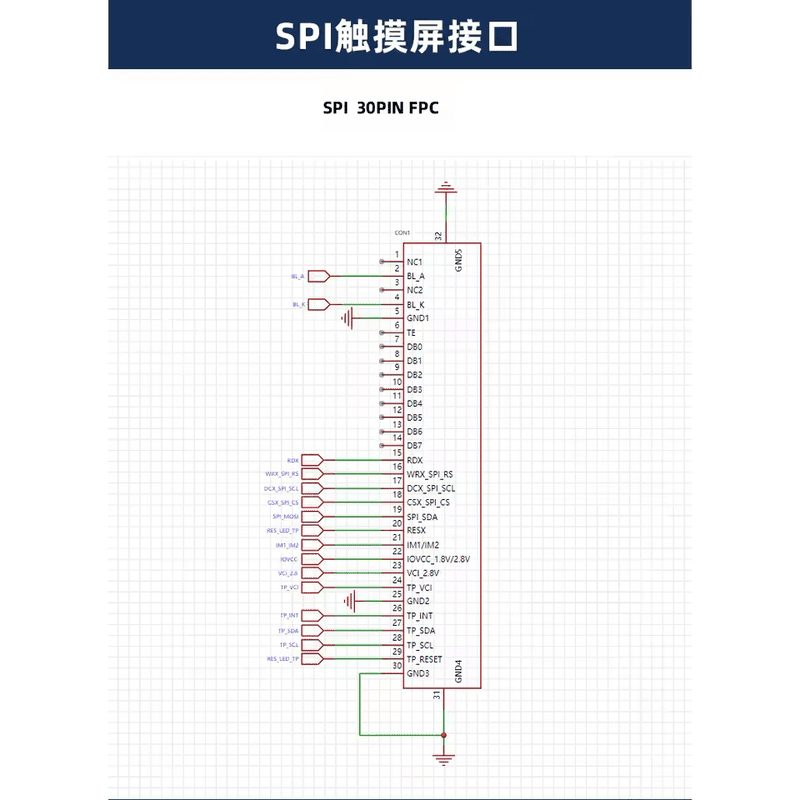

• Display Interface: SPI interface compatible with GC9307N color TFT display and CHSC6540 touch screen controller, with driver code available.

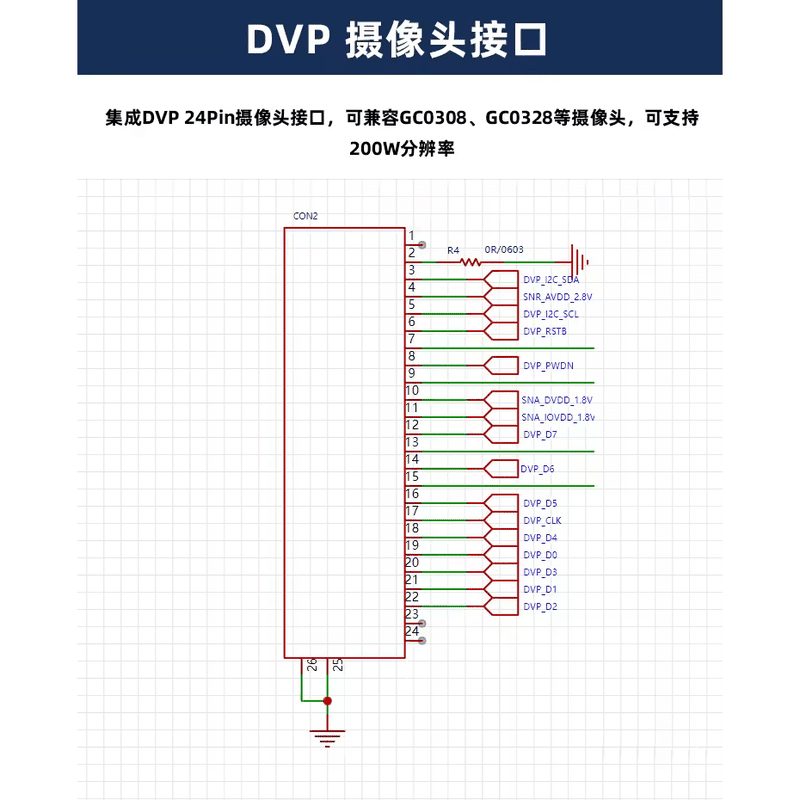

• Camera Interface: DVP 24Pin interface, compatible with GC0308 and GC0328 cameras, supporting up to 200W resolution.

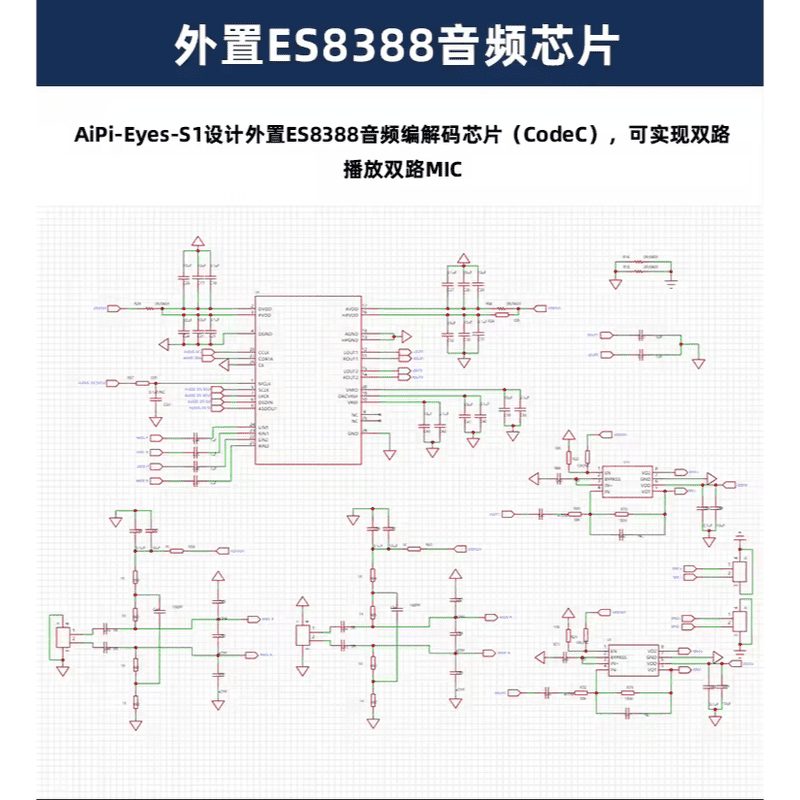

• Audio Capabilities: External ES8388 audio codec chip, enabling dual playback and dual microphone support for high-quality audio input and output.

Specifications

Applications

• Smart Displays and Interactive Systems
• Home Automation and IoT Gateways
• Multimedia Streaming and Playback Devices
• AI-Powered Applications
• Educational Tools

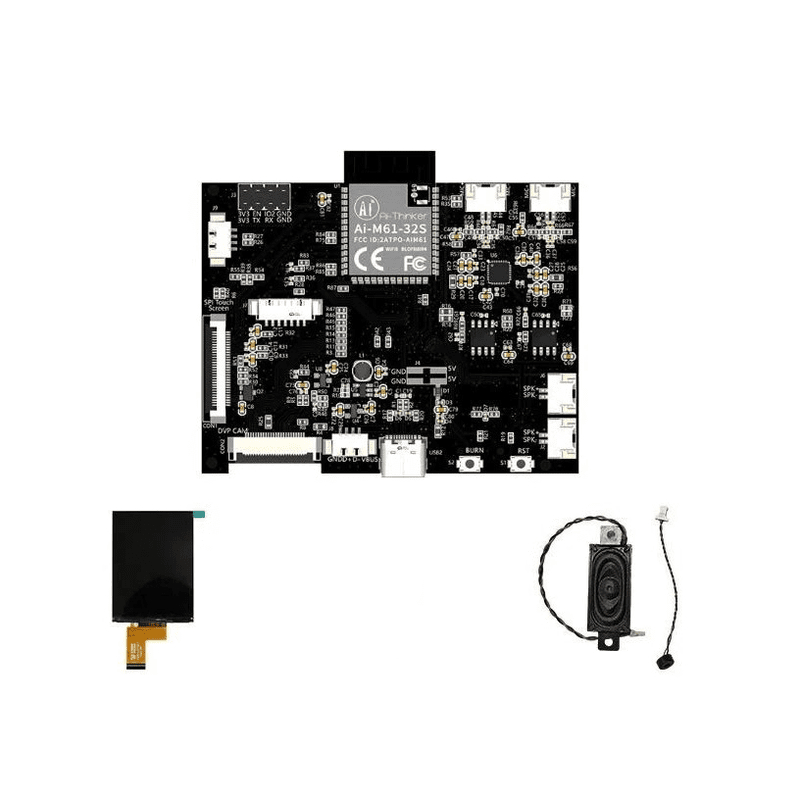

Package Content

• 1 x Ai-Thinker AiPi-Eyes-S1 Development Board
• 1 x Microphone
• 1 x Speaker
• 1 x 3.5inch SPI interface capacitive touch screen

DataSheet

• aipi-eyes-s1_user_manual_en
