Ai-Thinker Ra-01S LoRaWAN Module
The Ai-Thinker Ra-01S LoRa Module is a high-performance wireless communication solution tailored for long-range, low-power applications in the Internet of Things (IoT). Built around the Semtech SX1268 chip, this module operates in the 410-525MHz frequency band, aligning with regional regulations for sub-GHz communication. The Ra-01S leverages LoRa modulation technology, a spread spectrum technique derived from chirp spread spectrum (CSS), to deliver exceptional range, reliability, and power efficiency, making it an excellent choice for battery-powered devices in smart cities, industrial automation, and agricultural monitoring.
Features:
- LoRa™ modem.
- Support FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation methods.
- Support frequency band 410MHz~525MHz.
- Working voltage is 3.3V, maximum output is +22dBm, maximum working current is140mA.
- Low power consumption characteristics in receiving state, the minimum receiving current is 4.5 mA, standby current is 1.6mA.
- High sensitivity: as low as -140dBm.
- Small volume dual row stamp hole patch package.
- The module adopts SPI interface, half-duplex communication, with CRC, upto256-byte packet engine.
Specifications:
| Specification | Details |
|---|---|
| Model | Ra-01S |
| Package | SMD-16 |
| Size | 17mm× 16mm × 3.2mm(±0.2) mm |
| Antenna | IPEX socket |
| Spectrum Range | 410–525 MHz |
| Operating Temperature | -40°C to 85°C |
| Storage Environment | -40°C to 125°C (<90% RH) |
| Power Supply | 2.7–3.6V (default 3.3V, current >200mA) |
| Interface | SPI |
| Programmable Bit Rate | Up to 300 kbps |

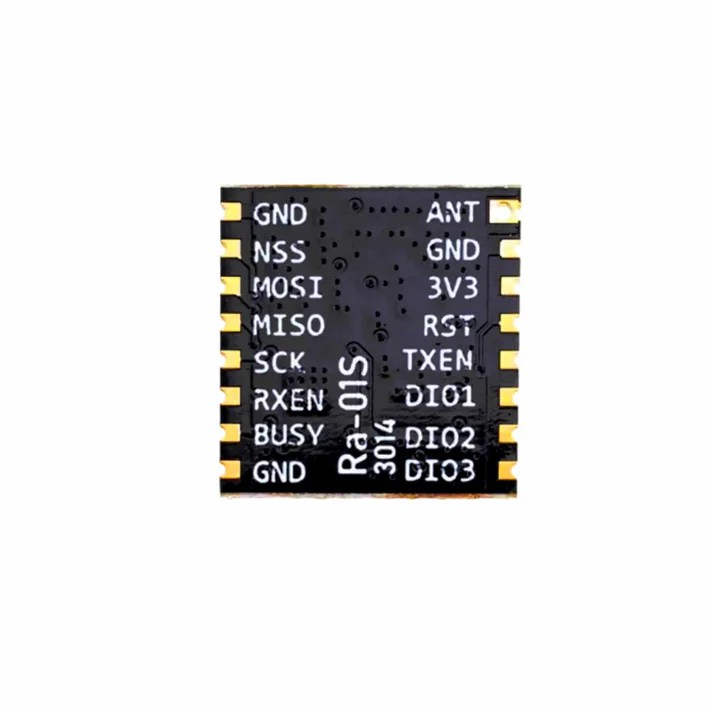

Pin Configuration:
| Pin No. | Name | Function Description |
|---|---|---|
| 1 | ANT | Antenna connection (solder/IPEX required) |
| 2 | GND | Ground |
| 3 | 3.3V | 3.3V power supply (2.7-3.6V range) |
| 4 | RESET | Active-low reset (pulse to restart) |
| 5 | TXEN | RF transmit enable control |
| 6 | DIO1 | Digital IO1 (interrupt/event trigger) |
| 7 | DIO2 | Digital IO2 (interrupt/event trigger) |
| 8 | DIO3 | Digital IO3 (interrupt/event trigger) |
| 9 | GND | Ground |
| 10 | BUSY | Status indicator (high=busy) |
| 11 | RXEN | RF receive enable control |
| 12 | SCK | SPI clock input |
| 13 | MISO | SPI data output (Master In Slave Out) |
| 14 | MOSI | SPI data input (Master Out Slave In) |
| 15 | NSS | SPI chip select (active low) |
| 16 | GND | Ground |
Application:
- Smart metering.
- Home and building automation.
- Industrial monitoring.
- Agricultural sensing.
- Security systems.
- Remote irrigation systems.
Package Include:
- 1x Ai-Thinker Ra-01S LoRaWAN Module.
