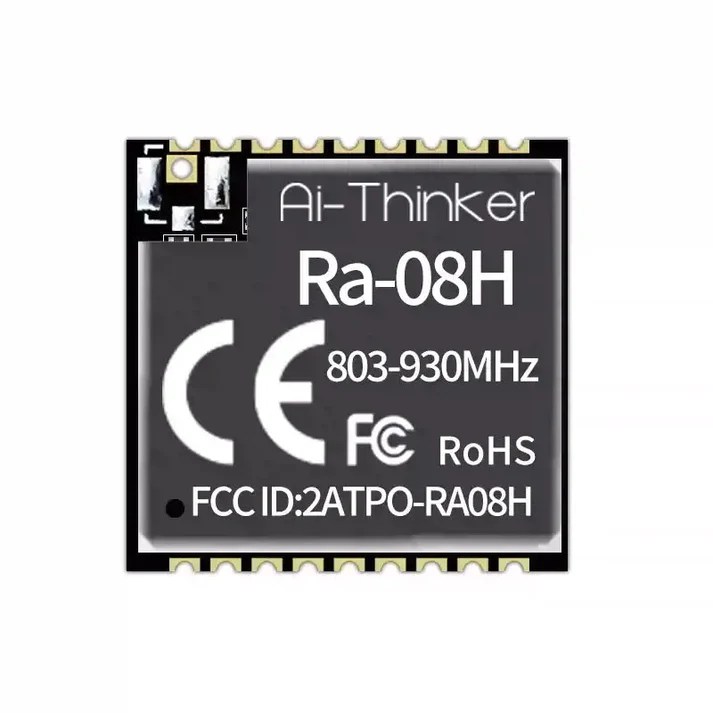

Ai-Thinker Ra-08H LoRaWAN Module
The Ai-Thinker Ra-08H LoRaWAN Module is an advanced solution designed for long-range, low-power wireless communication, tailored specifically for Internet of Things (IoT) applications. Built around the ASR6601 system-on-chip, this module integrates high-performance RF transceivers, modems, and a 32-bit RISC microcontroller unit based on an ARM Cortex-M4 core operating at 48MHz. This powerful combination ensures robust processing capabilities, making the Ra-08H an ideal choice for developing sophisticated IoT devices that require reliable, long-distance communication.
Features:
- Adopt SMD-18 package.
- Support frequency: 803MHz ~930MHz.
- Working voltage is 3.3V, theoretical maximum transmit power: +22dBm.
- High sensitivity: -138dBm @125Kz SF12.
- Support spread spectrum factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12.
- Embedded memory, 128KB FLASH,16KB SRAM.
- Support LoRa/(G)FSK/BPSK/(G)MSK modulation.
- Antenna interface is compatible with stamp holes / circular holes and IPEX, etc., support
more option selection. - Support multiple sleep modes: depth sleep current is low to 0.9uA.
Specifications:
| Specification | Details |
|---|---|
| Model | Ra-08H |
| Package | SMD-18 |
| Size | 16mm × 16mm × 3.2mm (±0.2) mm |
| Antenna | half-hole pad / through-hole pad/IPEX |
| Frequency | 803–930 MHz |
| Operating Temperature | -40°C ~ 85°C |
| Storage Temperature | -40°C ~ 125°C, < 90% RH |
| Power Supply | Voltage: 2.7V–3.6V, Current >500mA |
| Interface | UART/GPIO/ADC/DAC/I2C/I2S/SPI/PWM |
| IO Pins | IO2, IO4, IO5, IO8, IO9, IO11, IO14, IO15 |
| UART Rate | 110–4,608,000 bps (Default: 115,200 bps) |
| Crystal Frequency | 32MHz |
| SPI Flash | 128KB |
| Transfer Protocol | LoRaWAN, LinkWAN |
Pin Configuration:
| Pin No. | Name | Function |
|---|---|---|
| 1, 17 | GND | Ground |
| 2 | IO8 | GPIO8 / ADC_IN1 |
| 3 | IO11 | GPIO11 / ADC_IN0 |
| 4 | IO9 | GPIO9 / DAC_OUT |
| 5 | IO4 | GPIO4 / SSP1_CLK |
| 6 | IO5 | GPIO5 / SSP1_NSS |
| 7 | SWCLK | GPIO7 / SWD_CLK (Serial Wire Debug Clock) |
| 8 | SWDIO | GPIO6 / SWD_DATA (Serial Wire Debug Data) |
| 9 | VCC | 3.3V power supply (recommended current ≥500mA) |
| 10 | LPRXD | GPIO60 / LPUART-RX (Low-Power UART RX) |
| 11 | TXD | GPIO17 / UART TX (Main UART Transmit) |
| 12 | RXD0 | GPIO16 / UART RX (Burning/Programming Port) |
| 13 | IO15 | GPIO15 / I2C_SDA |
| 14 | IO14 | GPIO14 / I2C_SCL |
| 15 | IO2 | GPIO2 / BOOT (Boot Mode Control) |
| 16 | RST | RSTN_IN (External Reset, active low) |
| 18 | ANT | Antenna Interface |
Package Include:
1x Ai-Thinker Ra-08H LoRaWAN Module.
