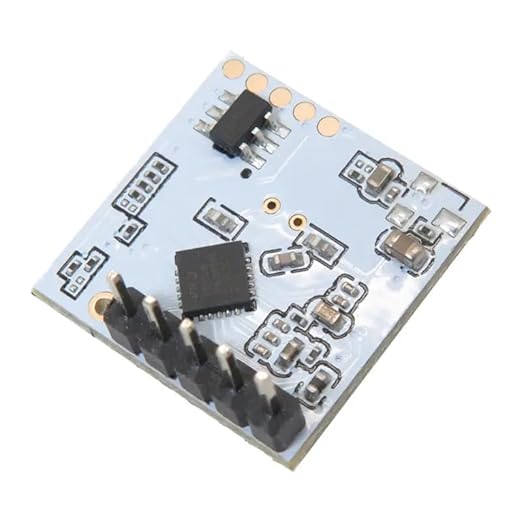

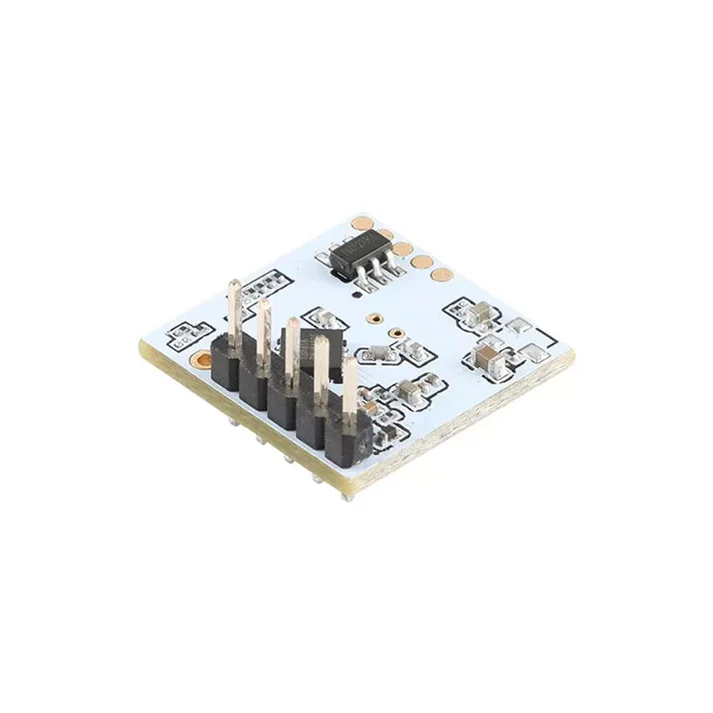

Ai-Thinker Rd-04 10GHz Wave Radar Sensor
The Ai-Thinker Rd-04 10GHz Wave Radar Sensor is an advanced motion perception module engineered for precise human presence detection across a variety of applications. Developed by Shenzhen Ai-Thinker Technology Co., Ltd., this module leverages the Phosense XBR818 chip, operating at a center frequency of 10.525GHz within the X-band radar spectrum (10.275–10.775GHz). Its design incorporates a 1T1R (1 Transmit, 1 Receive) antenna configuration, enabling directional transmission and reception for enhanced detection accuracy.
Features:
- DIP package, standard 2.0mm pin header.
- The radar supports the 10.525G frequency band.
- Integrated digital signal detection and processor, real-time output of moving target
detection results. - Support IIC bus configuration.
- Support pulse power supply mode.
- Support integrated photosensitive drive.
- Support a variety of installation methods such as top hanging and wall hanging.
- The longest radar induction range is up to 6.5 meters.
- The radar detection Angle is large, and the coverage range can reach ± 50 degrees.
Specification:
| Specification | Details |
|---|---|
| Model | Rd-04 |
| Package | DIP |
| Size | 15mm× 15mm |
| Antenna | On-board PCB antenna |
| Frequency Range | 10.275–10.775 GHz (X-band radar) |
| Operating Temperature | -40°C ~ 85°C |
| Storage Environment | -40°C ~ 125°C, < 90% RH |
| Power Supply Range | Voltage: 3.0V–3.6V, Current ≥100mA |
| Supported Interface | I²C (IIC) |
| Available I/O Quantity | 2 |
Pin Configuration:
| Pin No. | Name | Function |
|---|---|---|
| 1 | SDA | I²C data line |
| 2 | SCL | I²C clock line |
| 3 | OUT | Detection output (High = Motion detected, Low = No motion) |
| 4 | GND | Ground |
| 5 | VIN | 3.3V power input |
| 6 | IIC_EN | I²C enable (Connect to MCU GPIO for low-power mode control) |
Applications:
- Human sensor light control systems for automated lighting.
- Human presence detection for awakening advertising screens and equipment.
- Life safety protection devices for enhanced security.
- Smart home appliances and systems for energy efficiency.
- Intelligent security solutions for intrusion detection.
- IoT devices requiring precise human detection.
Package Include:
- 1x Ai-Thinker Rd-04 10GHz Wave Radar Sensor Module.
Data Sheet:
