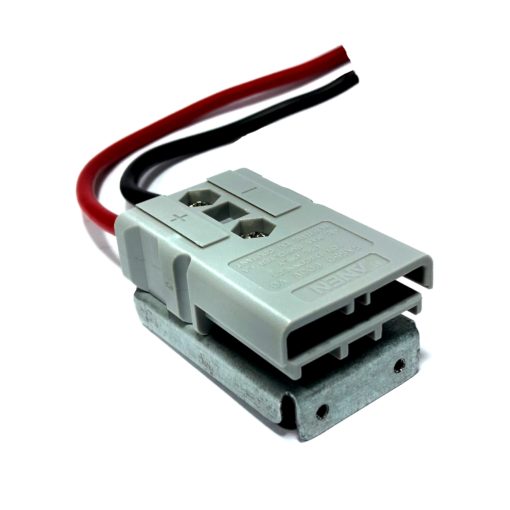

ANEN SAS50 DC Power Connector 50A 2 Pole Built-in 10AWG Cable and Metal Mounting Base

ANEN SAS50 DC Power Connector 50A 2 Pole Built-in 10AWG Cable and Metal Mounting Base

The ANEN SAS50 DC Power Connector offers a compact, versatile solution for high-current DC power connections. Designed to handle up to 50A, this connector features a 2-pole configuration and pre-attached 10AWG cables, ensuring optimal current-carrying capacity. The metal mounting base provides enhanced mechanical stability, making it suitable for applications requiring durability and secure installation. Its compact design and robust locking mechanism ensure easy integration into various systems.

Features:

• High Current Rating: Supports up to 50A, ideal for demanding power applications.
• 2-Pole Design: Provides stable and reliable DC power connections for critical systems.
• Built-in 10AWG Cable: Ensures low resistance and high current-carrying capacity.
• Metal Mounting Base: Durable and secure mounting for enhanced mechanical stability.
• Compact and Lightweight: Optimized for systems with limited space.
• Durable Materials: Constructed from high-strength plastic housing and metal base for long-lasting performance.
• Secure Locking Mechanism: Prevents accidental disconnection during operation.
• Polarity Protection: Reduces risks of incorrect connections to enhance safety.
• High Cycle Life: Designed for repeated mating cycles, ensuring reliable performance over time.
• Wide Operating Temperature: Capable of functioning in extreme conditions, from -20°C to 105°C.

Dimensions:

Specifications:

• Rating Current : 50A
• Rating Voltage : 600V DC
• Number of Poles: 2 poles
• Cable Type: Built-in 10AWG cable for high conductivity
• Mounting Base: Metal construction for secure panel
• Material: High-strength plastic housing and metal base
• Connector Type: DC power connector with a locking mechanism
• Operating Temperature Range: -20°C to 105°C
• Mating Cycles: Rated for over 500 cycles
• Dimensions: Compact form factor for ease of integration
• Compliance: Meets industrial safety and performance standards
• Contact Resistance: 0.5 mΩ
• Insulation Resistance: 1000 MΩ at 500V DC
• Dielectric Strength: 2200V AC

Applications:
