ANYCUBIC Photon Mono X High Speed Resin 3D Printer With 8.9 inch 4K Monochrome LCD

ANYCUBIC Photon Mono X High Speed Resin 3D Printer With 8.9 inch 4K Monochrome LCD

The ANYCUBIC Photon Mono X High Speed Resin 3D Printer With 8.9 inch 4K Monochrome LCD is a high-speed resin 3D printer engineered for precision and performance. Featuring a large 8.9-inch 4K monochrome LCD screen, it delivers ultra-fast curing times and remarkable detail in every print. Its monochrome display allows for significantly faster exposure—up to 4x the speed of traditional RGB LCD printers—while also increasing durability and reducing energy consumption. With a print volume of 192 x 120 x 245 mm, it accommodates larger models or multiple parts in one go. The Mono X also includes a robust metal body, dual linear rails for improved stability, matrix UV light source, and Wi-Fi control via the Anycubic app, offering users greater control and convenience. Ideal for hobbyists, designers, and professionals seeking high-resolution prints with speed and reliability.

Features

• 8.9-inch 4K Monochrome LCD Delivers high-resolution prints with faster layer curing times and longer screen life.
• High-Speed Printing Up to 4 times faster than traditional resin printers with monochrome LCD technology.
• Large Build Volume Offers a generous print area of 192 x 120 x 245 mm for printing larger models or multiple parts at once.

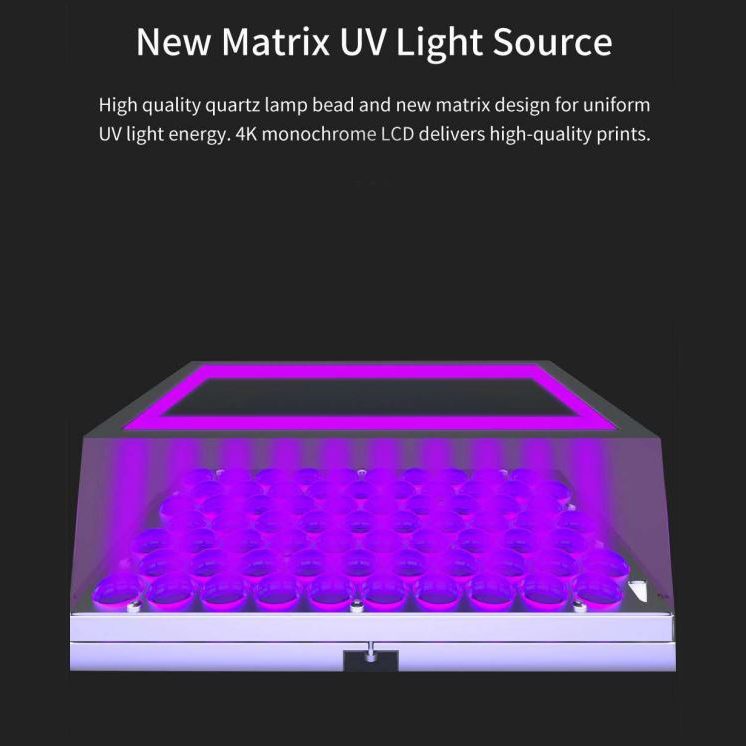

• Matrix UV Light Source Ensures even exposure for consistent print quality and fine details.
• Dual Linear Rails Provides greater stability and smoother movement, reducing layer shifting and improving print accuracy.
• Wi-Fi Connectivity Supports remote monitoring and control via the Anycubic app for added convenience.
• Sturdy Metal Frame Enhances durability and reduces vibrations during printing.
• Easy Bed Leveling Simplifies setup and improves first-layer adhesion.
• Anti-Aliasing Support Smooths model surfaces for improved finish and appearance.

Specifications

• Build & Physical Dimensions
  • Build volume(L × W × H): 192mm X 120mm X 245 mm
  • Overall size(L × W × H): 270mm X 290mm X 475 mm
  • Net weight: 11 kg
• Display & Resolution
  • LCD screen: 8.9‑inch 4K monochrome LCD (3840 × 2400 px)
  • XY resolution: ~0.05 mm (50 µm)
  • Z-axis (layer height) resolution: 0.01 mm (10 µm)
• Printing Performance
  • Max print speed: Up to 60 mm/h
  • UV light source: 405 nm LED, Matrix UV design for uniform exposure

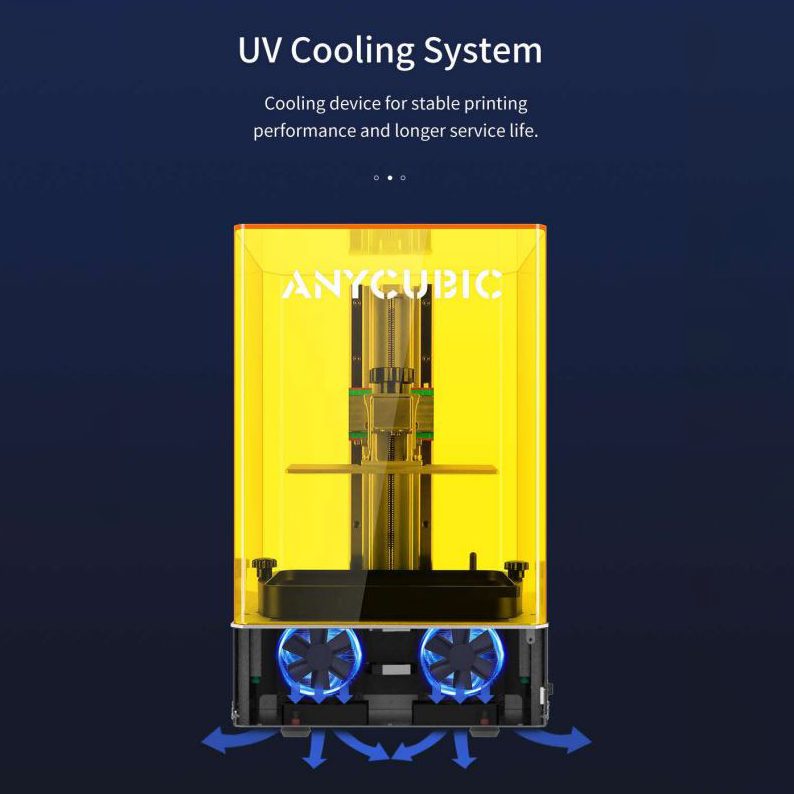

  • UV cooling system: Built in for stable performance and longer component life
• Hardware & Build
  • Frame: Solid metal body with enclosed design

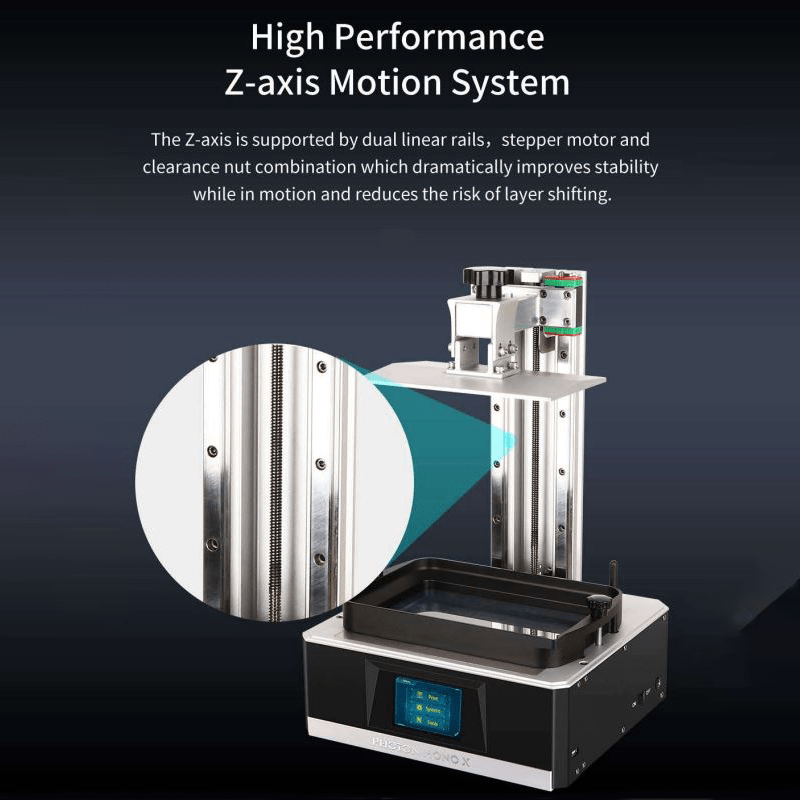

  • Z‑axis motion: Dual linear rails + leadscrew for greater stability and accuracy

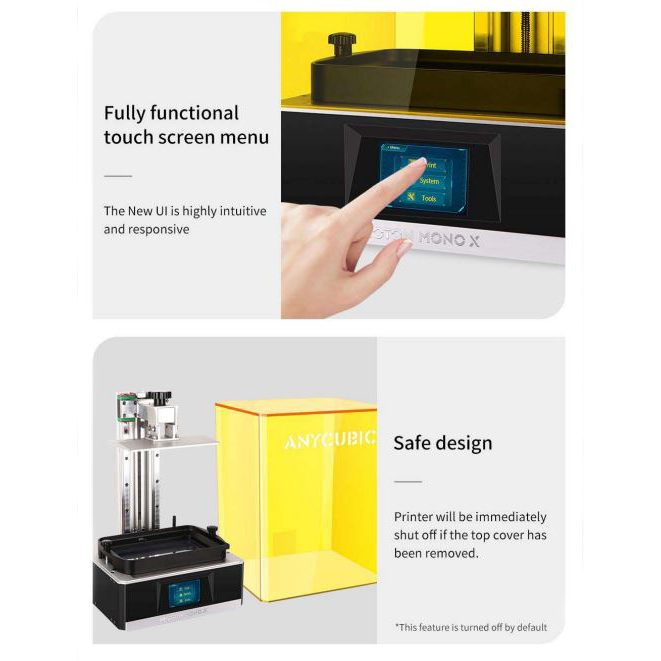

  • Touch interface: 3.5‑inch color touchscreen with intuitive controls
  • Connectivity: USB Type-A port for file transfer; built-in Wi‑Fi via external antenna
• Power & Software

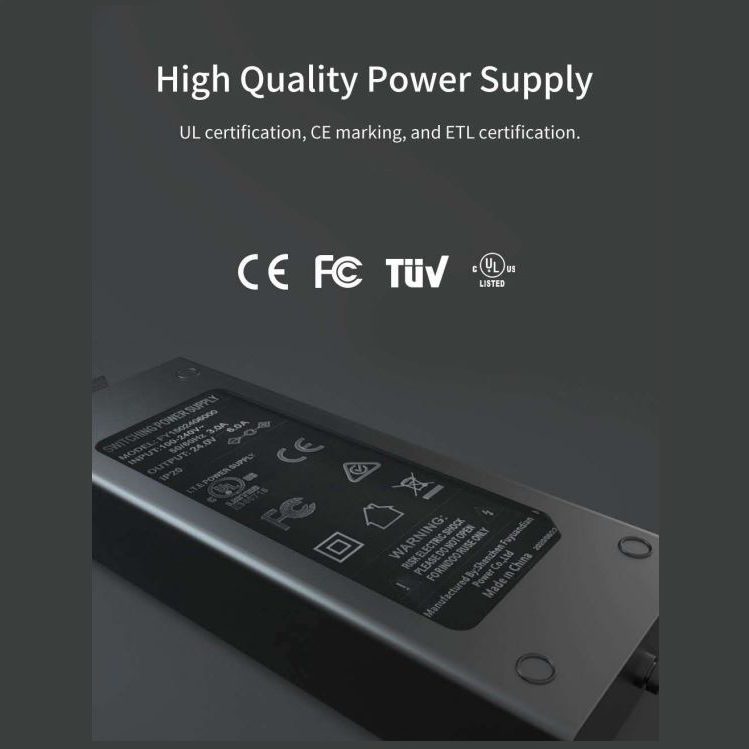

  • Rated power consumption: 120 W

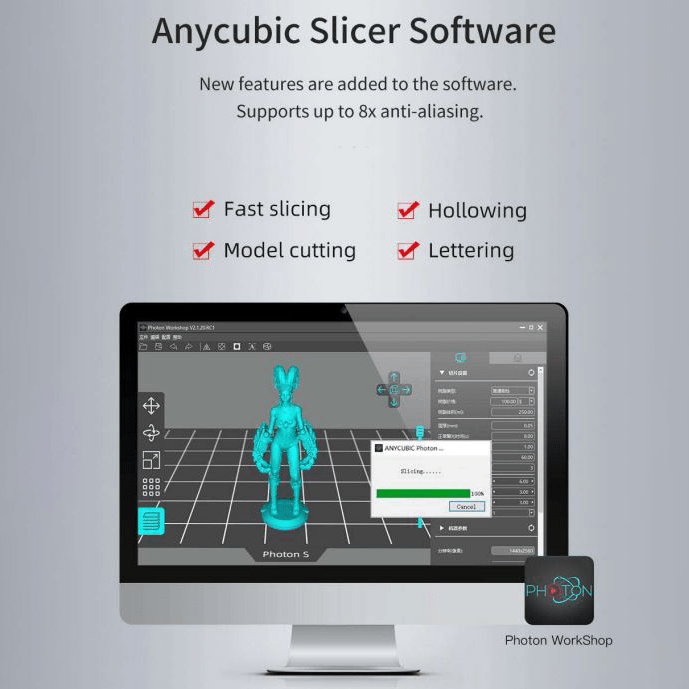

  • Software: Compatible with Anycubic Photon Workshop
• Interface: 3.5‑inch touchscreen TFT UI; connectivity via USB (A‑port) and limited Wi‑Fi monitoring via Anycubic app, configured through a .txt file on USB
• Materials Supported: Standard 404 nm UV photopolymer resin (non-proprietary vats with replaceable FEP film)
• UV Cooling System: Integrated cooling to improve longevity of components, especially the LCD
• Operating Conditions: Designed for ambient temperature 8 °C to 40 °C
• Humidity: 20–50%
• Included Accessories
  • Common accessories included: gloves, resin filters, spatulas (metal & plastic), USB reader, Wi‑Fi antenna, screws, manual, and funnel tools

Applications

• Prototyping Ideal for engineers and designers to rapidly create accurate and detailed product prototypes with fine surface finishes.
• Miniature Models Perfect for hobbyists and modelers creating detailed figurines, tabletop gaming pieces, and collectibles.
• Dental and Medical Models Suitable for printing dental molds, surgical guides, and anatomical models with high precision.
• Jewelry Design Enables jewelers to print intricate patterns and custom designs for casting or presentation.
• Art and Sculpture Used by artists to craft highly detailed sculptures, ornaments, and decorative items.
• Education and Research Helps educators and researchers create visual aids, study models, and experimental prototypes.
• Product Design Testing Useful for visual and functional testing of parts before committing to mass production.
• Custom Accessories Can be used to create bespoke parts or functional components for gadgets, tools, or enclosures.

Package Contents

• 1 X  ANYCUBIC Photon Mono X High Speed Resin 3D Printer With 8.9 inch 4K Monochrome LCD

Document

• photone-mono-x-High Speed Resin 3D Printer
