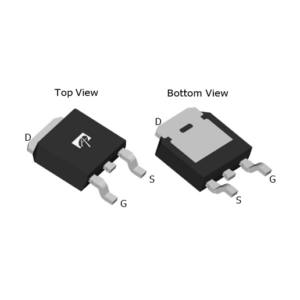

AOD403 SMD MOSFET Transistor P-Channel 30V 15A 3.5V @ 250uA 6mΩ @ 20A,20V 2.5W TO-252-2(DPAK)

12.50 EGP

Buy Now
Availability: In Stock
SKU:9807762531053
Description:

The AOD403/AOI403 uses advanced trench technology to provide excellent RDS(ON), low gate charge and low gate resistance. With the excellent thermal resistance of the DPAK/IPAK package, this device is well suited for high current load applications.

Specifications:
TYPE DESCRIPTION
Category Discrete Semiconductor Products

Transistors

FETs, MOSFETs

Single FETs, MOSFETs

Mfr Alpha & Omega Semiconductor Inc.

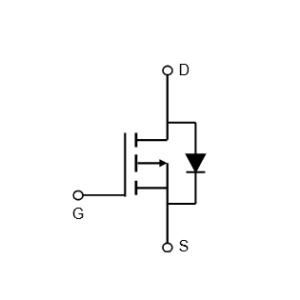

FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current – Continuous Drain (Id) @ 25°C 15A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V, 20V
Rds On (Max) @ Id, Vgs 6mOhm @ 20A, 20V
Vgs(th) (Max) @ Id 3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 120 nC @ 10 V
Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 5300 pF @ 15 V
Power Dissipation (Max) 2.5W (Ta), 90W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Base Product Number AOD40
