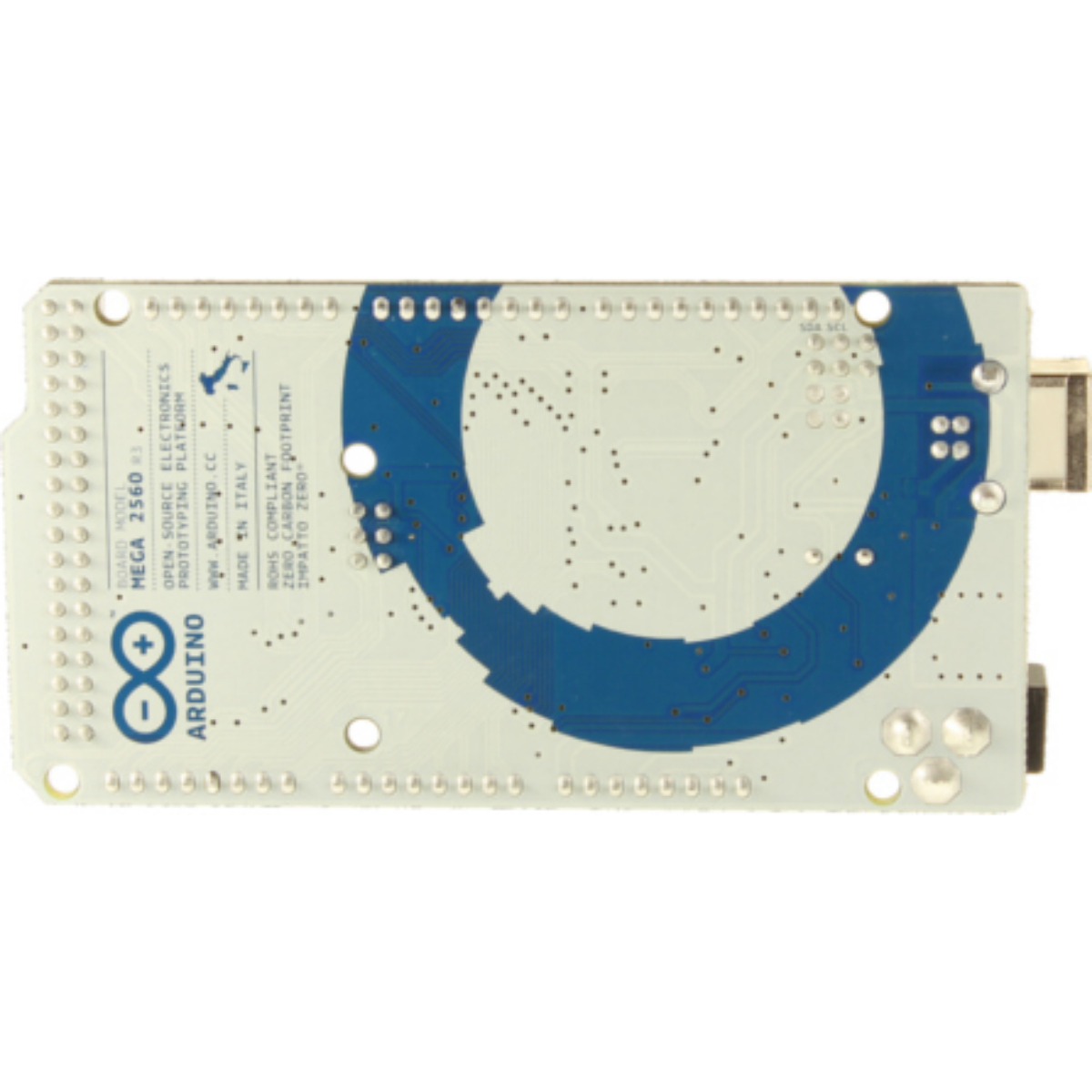

Arduino MEGA 2560
The Arduino Mega 2560 is centered around the ATmega2560 microcontroller, providing a robust platform for demanding sketches that exceed the memory limits of smaller boards. It features 54 digital I/O pins and 16 analog inputs, allowing for the simultaneous control of multiple motors, sensors, and displays.
Features
- High Pin Count
- Expanded Memory
- Quad Hardware Serial
- ATmega16U2 Chip
- Shield Compatibility
Specifications
| Component | Specification |
| Microcontroller | ATmega2560 |
| USB-Serial Processor | ATmega16U2 |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7–12V |
| Input Voltage (Limit) | 6–20V |
| Digital I/O Pins | 54 (15 provide PWM output) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 20 mA |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
Applications
- 3D Printers
- Robotics
- Home Automation
- Data Logging & Sensor Networks
- Industrial Control & Prototyping
Package Content
- 1 x Arduino MEGA 2560
