Overview

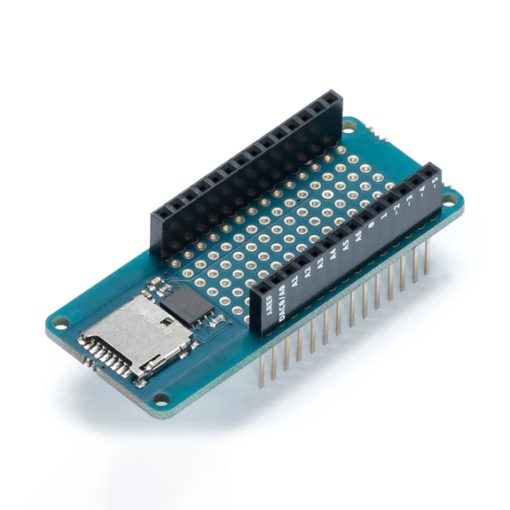

The Arduino MKR MEM shield will allow you to add more flash memory and storage. It provides 2-megabytes of flash memory. It also includes a slot for adding a microSD card to store several gigabytes of storage. This can allow you to store data for later analysis.
Tech specs
Here you will find the technical specifications for the Arduino MKR MEM Shield.
| Shield | Name | Arduino® MKR MEM Shield |
|---|---|---|
| SKU | ASX00008 | |
| Compatibility | MKR | |
| Communication | SPI | |
| Features | Storage | Micro SD card slot |
| Flash memory | 2MB (W25Q16) | |
| Prototyping area | Yes | |
| Power | Operating Voltage | 3.3V |
| Dimensions | Width | 27 mm |
| Length | 61 mm | |
Documentation
OSH: Schematics
The Arduino MKR Mem Shield is open-source hardware! You can build your own board using the following files:
Click to download the official datasheet of the W25Q16 memory chip.
