Arduino Pro Micro 5V/16MHz Atmega32U4-MU Board with Micro USB

Arduino Pro Micro 5V/16MHz Atmega32U4-MU: Compact and Efficient Development Board with Micro USB Interface

The Arduino Pro Micro Atmega32u4 is a small, breadboard-friendly microcontroller board. It has an operating voltage of 5V and a clock speed of 16 MHz, making it suitable for a wide range of applications. The ATmega32U4 microcontroller has 32KB of flash memory, 2.5KB of SRAM, and 1KB of EEPROM, and features built-in USB support, which eliminates the need for a separate USB-to-serial converter. The Pro Micro is commonly used for DIY electronics projects, hobbyist inventions, and educational purposes, and is ideal for projects that require a compact and low-cost microcontroller board.

There is a voltage regulator on board which can accept a power supply of 6-9VDC (max. 10V). Make sure to connect the input voltage to the RAW pin and not VCC (5V). A pair of pin headers are included (require soldering).

Features

• ATmega32U4-MU running at 5V/16MHz
• Supported under Arduino IDE v1.0.1 and above
• On-Board micro-USB connector for programming
• 9x 10-bit ADC pins
• 12x Digital I/O (5 are PWM capable)
• Rx and Tx Hardware Serial Connections

Specifications

PINOUT

Applications

• Ideal for creating compact embedded systems like sensors, wearable devices, and control systems.
• Perfect for rapid prototyping with minimal space and power requirements.
• Can be used to build custom keyboards, mice, or other USB devices, thanks to its USB capabilities.
• Used in IoT applications where a small, low-power board is required for communication and sensor data collection.
• Excellent for small robots or automated systems requiring precise control and small form factor.

Package Contents

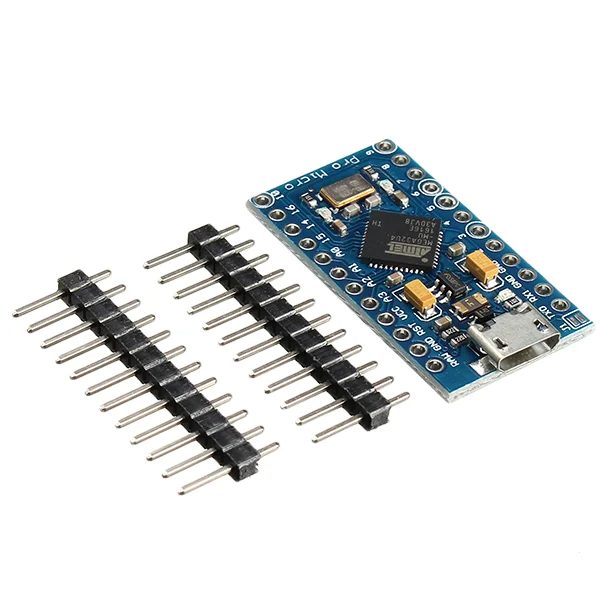

• 1x Arduino Pro Micro 5V/16MHz Atmega32U4-MU Board with Micro USB

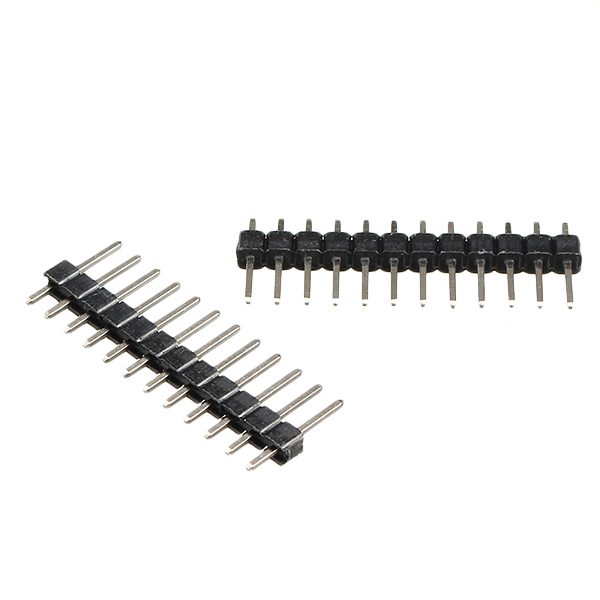

• 2x 12-pin headers (require soldering)

Datasheet

• Atmega32U4 Chip
