Arduino Uno Development Kit

Arduino Uno Development Kit

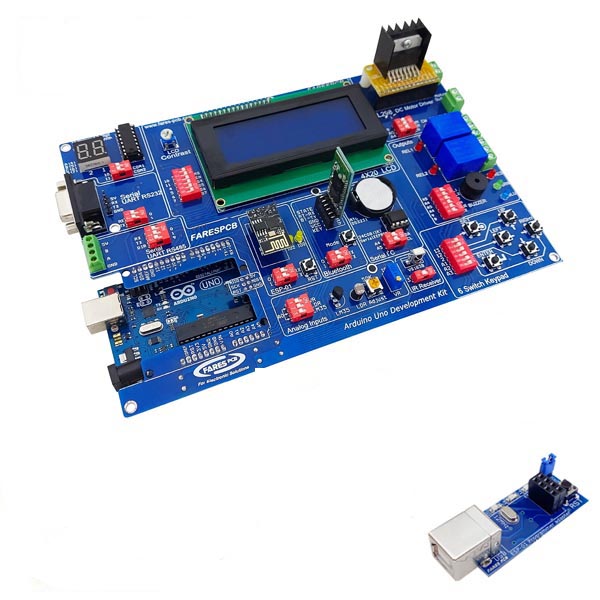

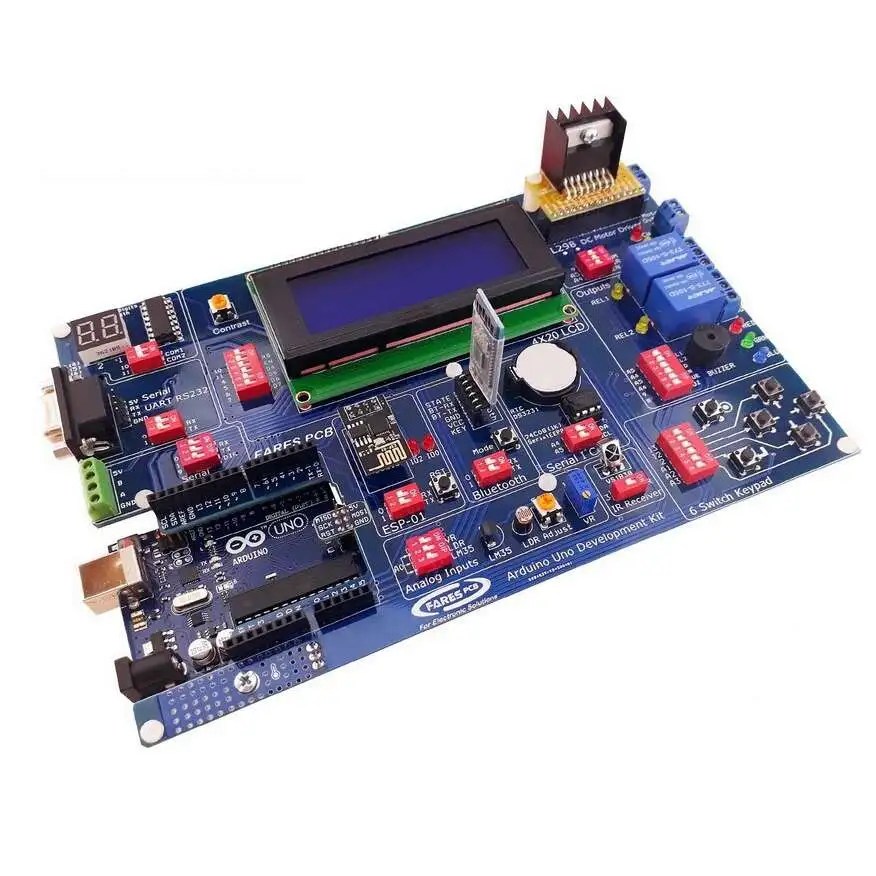

The Arduino Uno Development Kit is the ideal starter package for those looking to dive into the world of Arduino-based projects. It is perfect for students, beginners, and newly graduated engineers, offering a comprehensive selection of peripherals to jump-start your development. Whether you’re looking to experiment with sensors, displays, or wireless communication, this kit provides all the essential components. With an Arduino Uno board at its core, this kit allows users to build and prototype a wide range of electronics projects efficiently.

Features:

•  Power supply unit :
  • Uno kit can be powered from a DC wall wart adapter (9-15V)/1A.
• Microcontroller :
  • Arduino Uno board (ATMEGA328P).
  • 14 Digital I/O pins (of which 6 pins can be used as PWM outputs).
  • 6 Analog inputs.
  • 16MHz crystal oscillator.
  • USB connection.
  • DC power jack.
  • ICSP header.
  • Reset button.
• Display :
  • 80-character LCD (4X20) with backlight.
  •  2 Digit (common anode) 7-segment display with BCD decoder 7447.
• Input switches :
  • 6-switch keypad with pull-up resistors.
• Serial communication :
• UART communication
  • TTL (Full-duplex) female pin header.
  • RS232 (MAX232) (Full-duplex) standard DB9 female socket and pin header.
  • RS485 (MAX487) (Half-duplex) screw terminal.
• I² C
  •  DS3231 high precision RTC (Real Time Clock) with a backup battery.
  • AT24C08 serial EEPROM (1KB).
• Analog Inputs and sensors :
  • One adjustable analog input using a high-precision multi-turn potentiometer.
  •  Temperature sensor LM35 (0°C-  150°C) (0V – 1500mV).
  •  Light Dependent Resistor LDR with adjustable sensitivity.
•  Wireless :
  • Wi-Fi module ESP-01 ( Not Included) with reset switch and LED indicators for IO0 and IO2 ports.
  •  Bluetooth module socket complies with HC05 Bluetooth module ( Optional ) with mode switch.
  • IR (Infrared Receiver) sensor VS1838.
• Outputs :
  • Two relay outputs (10A) both normally open and normally close are available with a status LED indicator.
  •  General-purpose indicator LEDs ( Red, Green, and Blue).
  • Output buzzer.
• Motor driver :
  • DC motor control (speed and direction) up to 4A with CW/CCW direction status LED Indicator.
• On-board connections :
  • All Arduino pins are brought out via a female pin header for direct port connecting or plugging an  Arduino Uno shield.

Specifications:

Configuration:

Applications:

• Educational prototyping for students learning embedded programming and electronics.
• Home automation projects involving sensor data logging and relay control.
• Industrial monitoring systems with RS485 communication and temperature sensing.
• IoT device development using IR receivers and expandable wireless sockets.
• Motor-driven robotics for direction and speed control in hobby builds.
• Real-time clock-based applications like data timestamping and alarms.

Package includes:

• 1x Uno development kit
• 1x Arduino Uno board R3
• 1x CR2032 Battery
• 1x ESP-01 Programmer Adapter
• 1x l298 motor driver

Note:(Wi-Fi module ESP-01 & Bluetooth module)

Documents:

User manual

test codes
