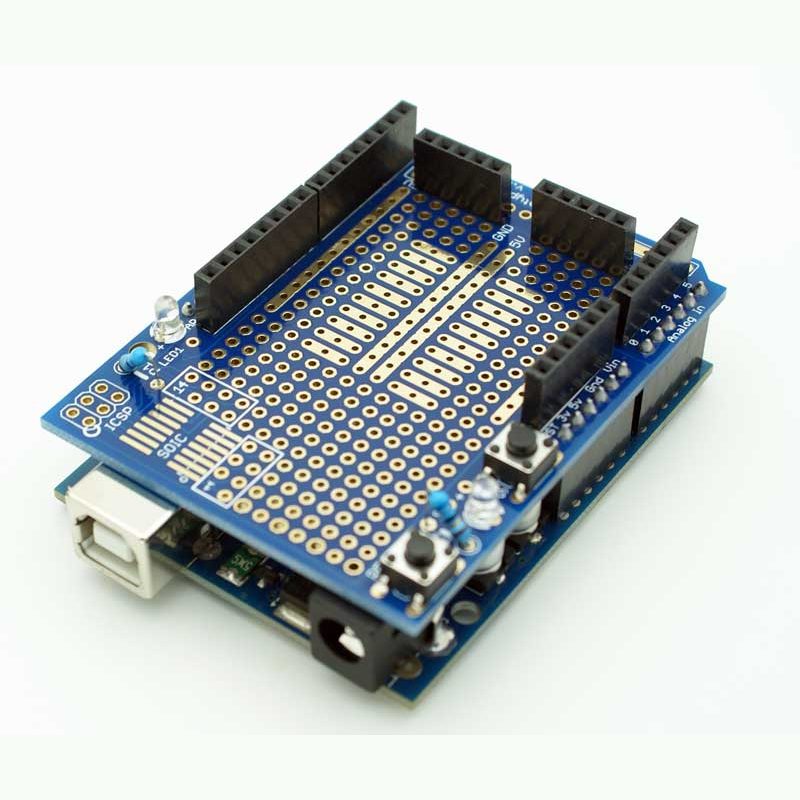

Arduino UNO Prototyping Shield
The Arduino UNO Prototyping Shield simplifies custom circuit design with comprehensive pinouts, footprint options, power distribution, and a solderless breadboard for rapid prototyping. Ideal for integrating Arduino into your projects
60.00 EGP
Buy NowArduino UNO Prototyping Shield – Custom Circuit Design Simplified
Features:
- Comprehensive Pinout: All 14 Arduino I/O pins are brought out for easy connection to external components. Includes Reset button and ICSP connector.
- Custom Circuit Space: Includes a 14-pin SMD footprint and a 20-pin Through Hole footprint for mounting both surface-mount and through-hole ICs.
- Power Distribution: Provides 5V and GND power rails for consistent power delivery across your custom circuit.

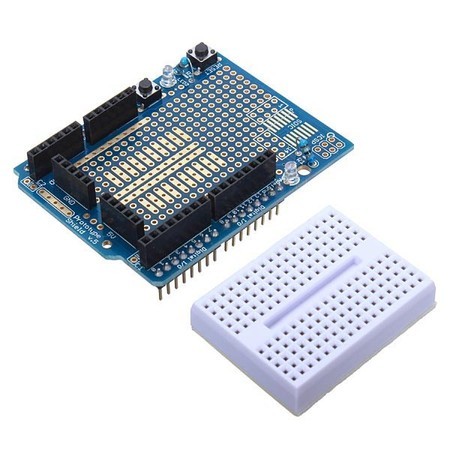

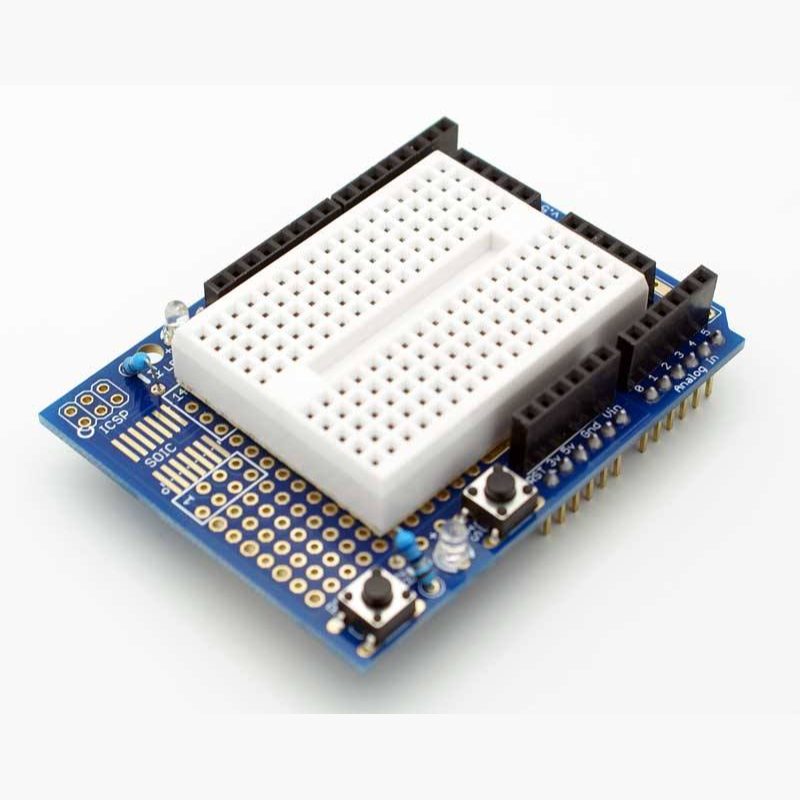

- Solderless Breadboard: Comes with a small solderless breadboard for quick testing and experimentation without soldering.
- Prototyping Area: Offers a dedicated area for soldering components to create your project, making it easy to design and build circuits on a single module.
Specifications:
| Attribute | Value |
|---|---|
| Dimensions | 68.7mm (L) x 53.5mm (W) x 1.6mm (H) |
| Arduino Pinout Access | All 14 I/O pins, Reset button, ICSP connector |
| Footprint Options | 14-pin SMD (50 mils pitch), 20-pin Through-Hole (100 mils pitch) |
| Power Supply | 5V and GND power rails for custom circuit power |
| Mounting Holes | 3 mounting holes for secure attachment |
| Compatibility | Arduino UNO and compatible boards |
| Additional Features | Solderless breadboard for testing, convenient custom circuit integration |
Applications:
- Custom Circuit Design: Ideal for building and testing unique circuits directly on the shield, integrating with Arduino UNO.
- Rapid Prototyping: Perfect for quick testing with the included solderless breadboard or soldering components for permanent setups.
- Educational Projects: Great for students and hobbyists to learn about circuit design, Arduino integration, and component soldering.
