AT24C08 Serial EEPROM DIP-8
The AT24C08 is an electrically-erasable serial EEPROM offered in an 8-lead PDIP or JEDEC SOIC package. It provides 8 Kbit of nonvolatile memory organized as 1,024 × 8-bit words and is accessed via a standard two-wire (I²C-style) serial interface. The device family is designed for low-voltage and automotive environments, giving system designers a compact, low-power means to store calibration data, configuration parameters or small data logs.
Internally the memory is arranged into 64 pages of 16 bytes each, enabling page-write operations that speed multi-byte programming. Communication follows the two-wire protocol (start/stop, acknowledge, read/write bit), and the device supports current-address, random and sequential read modes so software can efficiently access single bytes or long blocks of stored data. The WP (write-protect) input offers a simple hardware method to prevent accidental writes.
Reliability is emphasized through a self-timed write cycle (typical maximum 5 ms), one-million write-cycle endurance and a data-retention spec measured in decades. Variants cover both 2.7 V and 5 V operation ranges, and the part is commonly used where small, robust nonvolatile storage is required in embedded and automotive designs.
Features:
- Two-wire serial interface (I²C compatible).
- 8 Kbit density organized as 1,024 × 8 bits (64 pages × 16 bytes).
- 16-byte page-write capability (partial page writes allowed).
- Schmitt-trigger, filtered inputs for noise suppression.
- Bi-directional data transfer with acknowledge polling.
- 100 kHz (low-voltage) and 400 kHz (standard-voltage) bus compatibility.
- Write-protect (WP) pin for hardware data protection.
- Self-timed write cycle (typ. ≤ 5 ms).
- High reliability: 1,000,000 write cycles; long data retention.
- Available in 8-lead PDIP and JEDEC SOIC packages.
Specifications:
| Product Attribute | Attribute Value |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-8 |
| Interface Type: | 2-Wire, I2C |
| Memory Size: | 8 kbit |
| Organisation: | 1 k x 8 |
| Supply Voltage – Min: | 1.7 V |
| Supply Voltage – Max: | 5.5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Maximum Clock Frequency: | 1 MHz |
| Access Time: | 550 ns |
| Data Retention: | 100 Year |
| Supply Current – Max: | 3 mA |
| Active Read Current – Max: | 1 mA |
| Operating Supply Voltage: | 1.8 V to 5.5 V |
| Product Type: | EEPROM |

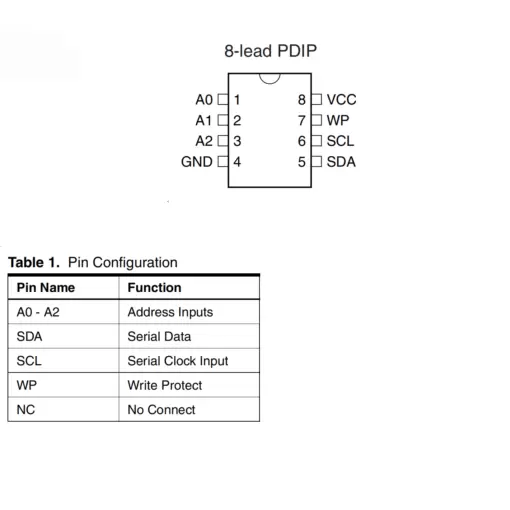

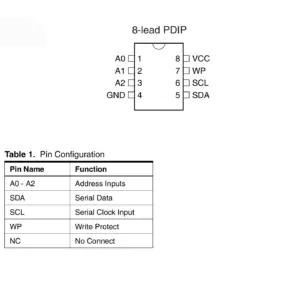

Pinout Diagram:

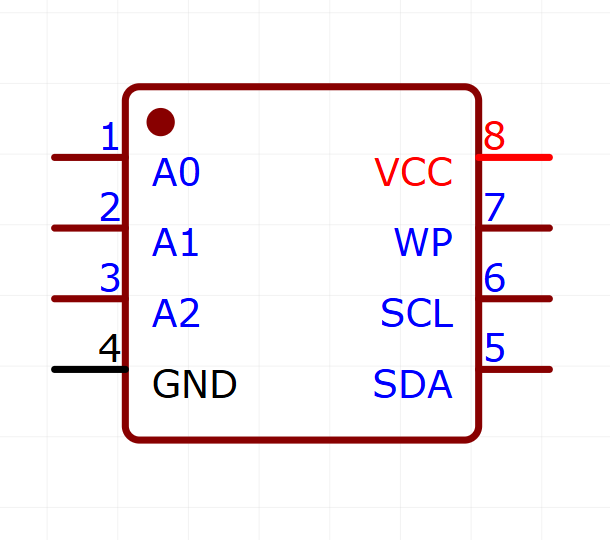

Footprint:
Applications:
- Automotive control modules.
- Embedded system nonvolatile configuration storage.
- Calibration and factory parameter storage.
- Small data logging and identification storage.
Package Contents:
- 1x AT24C08 Serial EEPROM DIP-8
