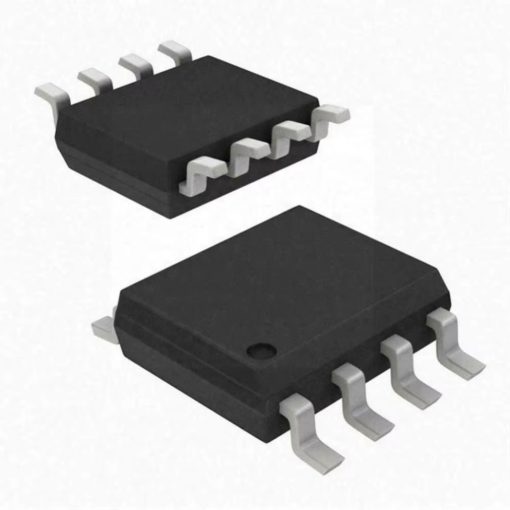

AT24C08N EEPROM IC 8Kbit I2C 400KHz SOP-8
The AT24C08N EEPROM IC 8Kbit I2C 400KHz SOP-8 is an 8Kbit serial EEPROM IC that communicates via the I²C protocol at speeds up to 400kHz. Housed in a compact SOP-8 package, it provides reliable, non-volatile memory storage suitable for a wide range of applications. The memory is organized as 1024 x 8 bits, allowing byte-level and page-level write operations. With low power consumption and high endurance, the AT24C08N is commonly used in embedded systems, consumer electronics, industrial control units, and automotive applications to store configuration data, calibration values, or user settings.
Features:
- Low Voltage and Standard-Voltage Operation
- 2-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bi-directional Data Transfer Protocol
- 100kHz and 400kHz Compatibility
- Write Protect Pin for Hardware Data Protection
- 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
- Partial Page Writes are Allowed
- Self-timed Write Cycle (10mS max)
Dimensions:
Pin Configuration:
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | A0 | Address Input |
| 2 | A1 | Address Input |
| 3 | A2 | Address Input |
| 4 | GND | Ground Pin |
| 5 | SDA | Serial Data Pin |
| 6 | SCL | Serial Clock Pin |
| 7 | WP | Write Protect Pin |
| 8 | VCC | Power Supply Pin |
Specifications:
| Type | Description |
| Category | Integrated Circuits (ICs) |
| Base Product Number | AT24C08 |
| Packaging | Tube |
| Part Status | Obsolete |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 8Kbit |
| Memory Organization | 1K x 8 |
| Memory Interface | I2C |
| Clock Frequency | 400 kHz |
| Write Cycle Time – Word, Page | 5ms |
| Access Time | 900 ns |
| Voltage – Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package | 8-SOIC |
| Base Product Number | AT24C08 |
