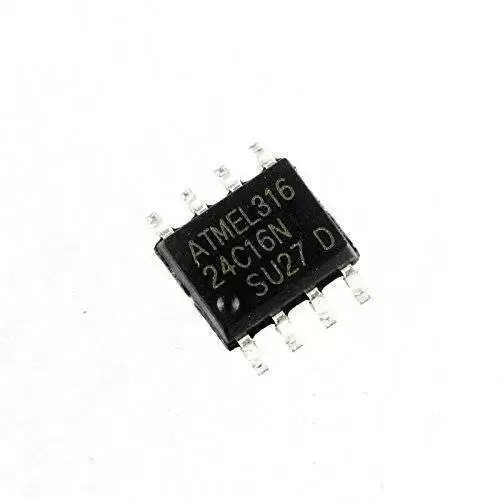

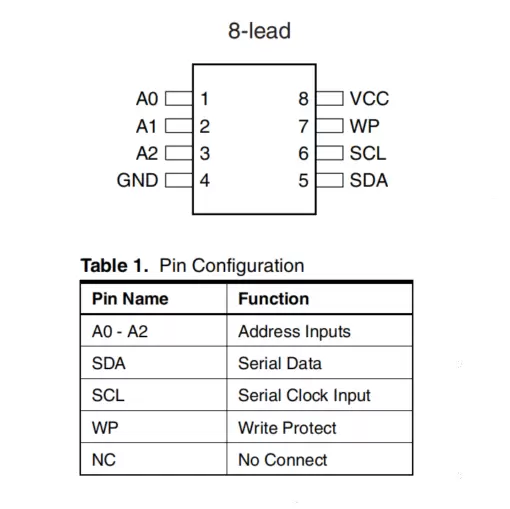

Pin Layout
Pin Description
| PIN NUMBER | DESCRIPTION |
|---|---|
| 1 | A0 – Address Input |
| 2 | A1 – Address Input |
| 3 | A2 – Address Input |
| 4 | GND – Ground |
| 5 | SDA – Serial Data |
| 6 | SCL – Serial Clock Input |
| 7 | WP – Write Protect |
| 8 | Vcc – Positive Power Supply |
Specifications
| Product Attribute | Attribute Value |
| Product Category: | EEPROM |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOIC-8 |
| Interface Type: | 2-Wire, I2C |
| Memory Size: | 16 kbit |
| Organisation: | 2 k x 8 |
| Supply Voltage – Min: | 1.7 V |
| Supply Voltage – Max: | 5.5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Maximum Clock Frequency: | 1 MHz |
| Access Time: | 450 ns |
| Data Retention: | 100 Year |
| Supply Current – Max: | 3 mA |
| Active Read Current – Max: | 1 mA |
| Operating Supply Voltage: | 1.7 V to 5.5 V |
