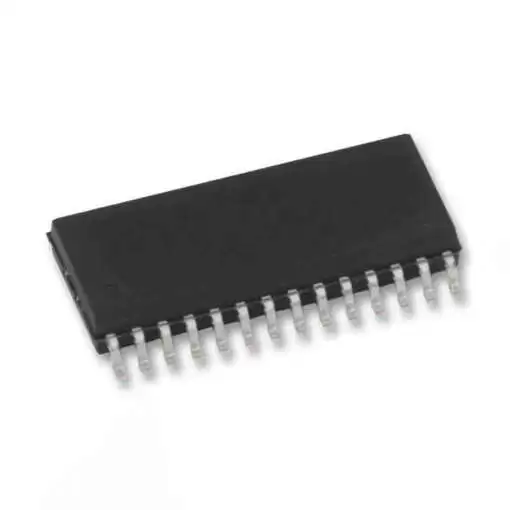

AT28C64B-15SU EEPROM SMD IC SOIC-28-300mil 64Kbit

485.00 EGP

Buy Now
Availability: In Stock
SKU:3496300070008

Description

The AT28C64B is a high-performance electrically-erasable and programmable read-only memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 220 mW. When the device is deselected, the CMOS standby current is less than 100 µA.

The AT28C64B is accessed like a Static RAM for the read or write cycle without the need for external components. The device contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. During a write cycle, the addresses and 1 to 64 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer. The end of a write cycle can be detected by DATA POLLING of I/O7. Once the end of a write cycle has been detected, a new access for a read or write can begin.

Atmel’s AT28C64B has additional features to ensure high quality and manufacturability. The device utilizes internal error correction for extended endurance and improved data retention characteristics. An optional software data protection mechanism is available to guard against inadvertent writes. The device also includes an extra 64 bytes of EEPROM for device identification or tracking.

Features:

• Fast Read Access Time – 150 ns
• Automatic Page Write Operation
– Internal Address and Data Latches for 64 Bytes
• Fast Write Cycle Times
– Page Write Cycle Time: 10 ms Maximum (Standard)
– 1 to 64-byte Page Write Operation
• Low Power Dissipation
– 40 mA Active Current
– 100 µA CMOS Standby Current
• Hardware and Software Data Protection
• DATA Polling and Toggle Bit for End of Write Detection
• High Reliability CMOS Technology
– Endurance: 100,000 Cycles
– Data Retention: 10 Years
• Single 5V ±10% Supply
• CMOS and TTL Compatible Inputs and Outputs
• JEDEC Approved Byte-wide Pinout
• Industrial Temperature Ranges

Specifications:

Product Attribute Attribute Value
Product Category: EEPROM
Mounting Style: SMD/SMT
Package/Case: SOIC-28
Interface Type: Parallel
Memory Size: 64 kbit
Organisation: 8 k x 8
Supply Voltage – Min: 4.5 V
Supply Voltage – Max: 5.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Maximum Clock Frequency: 5 MHz
Access Time: 150 ns
Data Retention: 10 Year
Supply Current – Max: 40 mA
Series: AT28C64B
Packaging: Tube
Active Read Current – Max: 40 mA
Moisture Sensitive: Yes
Operating Supply Current: 40 mA
Operating Supply Voltage: 5 V
Output Enable Access Time: 70 ns
Product Type: EEPROM
Programming Voltage: 4.5 V to 5.5 V

AT28C64B-15SU Datasheet
