Sold out
Atmega328-PB-AU SMD IC Microcontroller
280.00 EGP
Out of stockSKU 3496300062171
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Specifications
| Product Attribute | Attribute Value |
| Product Category: | 8-bit Microcontrollers – MCU |
| Core: | AVR |
| Program Memory Size: | 32 kB |
| Data RAM Size: | 2 kB |

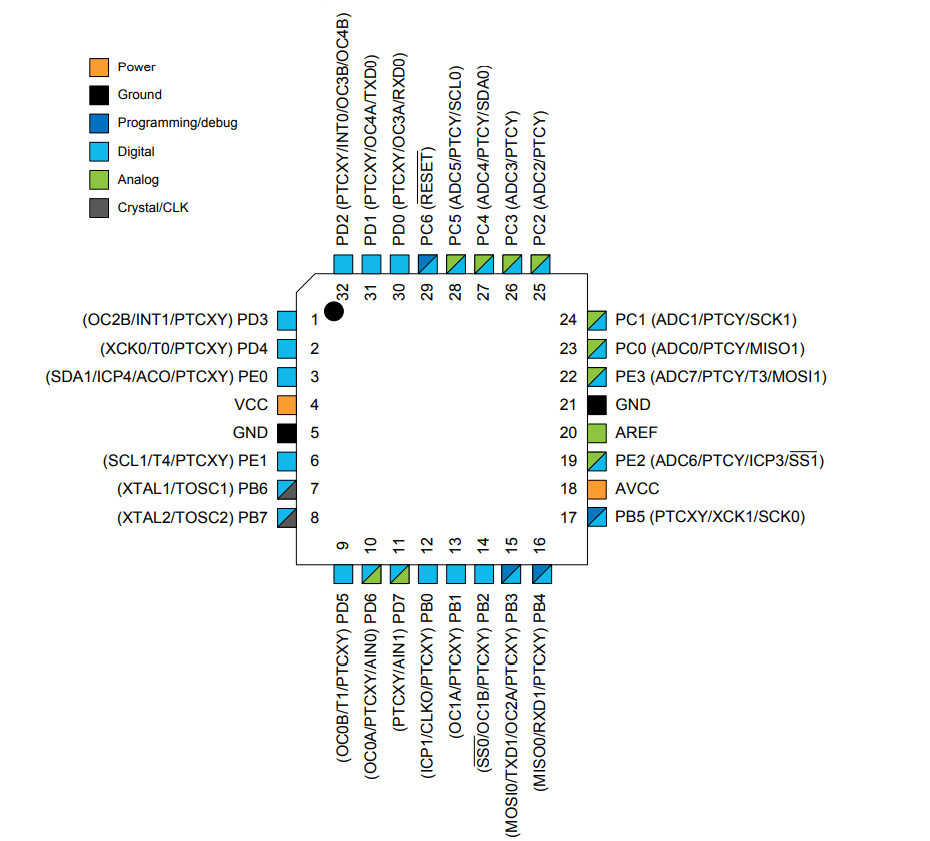

| Package/Case: | TQFP-32 |
| Maximum Clock Frequency: | 20 MHz |
| ADC Resolution: | 10 bit |
| Number of I/Os: | 23 I/O |
| Supply Voltage – Min: | 1.8 V |
| Supply Voltage – Max: | 5.5 V |
| Mounting Style: | SMD/SMT |
| Data Bus Width: | 8 bit |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| DAC Resolution: | No DAC |
| Data RAM Type: | SRAM |
| Data ROM Size: | 1 kB |
| Data ROM Type: | EEPROM |
| Development Kit: | ATMEGA328PB-XMINI |
| Interface Type: | 2-Wire, I2C, SPI, USART |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 8 Channel |
| Processor Series: | megaAVR |
| Product: | MCUs |
| Product Type: | 8-bit Microcontrollers – MCU |
| Program Memory Type: | Flash |
ATMEGA328PB-AU Datasheet
