Specifications
| Product Attribute | Attribute Value |
| Manufacturer: | Microchip |
| Product Category: | 8-bit Microcontrollers – MCU |
| Series: | ATmega8535 |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-40 |
| Core: | AVR |
| Program Memory Size: | 8 kB |
| Data Bus Width: | 8 bit |
| ADC Resolution: | 10 bit |
| Maximum Clock Frequency: | 16 MHz |
| Number of I/Os: | 32 I/O |
| Data RAM Size: | 512 B |
| Supply Voltage – Min: | 4.5 V |
| Supply Voltage – Max: | 5.5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Tube |
| Analogue Supply Voltage: | 2.7 V to 5.5 V |
| Data RAM Type: | SRAM |
| Data ROM Size: | 512 B |
| Data ROM Type: | EEPROM |
| I/O Voltage: | 2.7 V to 5.5 V |
| Interface Type: | I2C, SPI, USART |
| Number of ADC Channels: | 8 Channel |
| Number of Timers/Counters: | 3 Timer |
| Processor Series: | megaAVR |
| Product: | MCU |
| Product Type: | 8-bit Microcontrollers – MCU |
| Program Memory Type: | Flash |
| Subcategory: | Microcontrollers – MCU |
| Tradename: | AVR |
| Watchdog Timers: | Watchdog Timer |

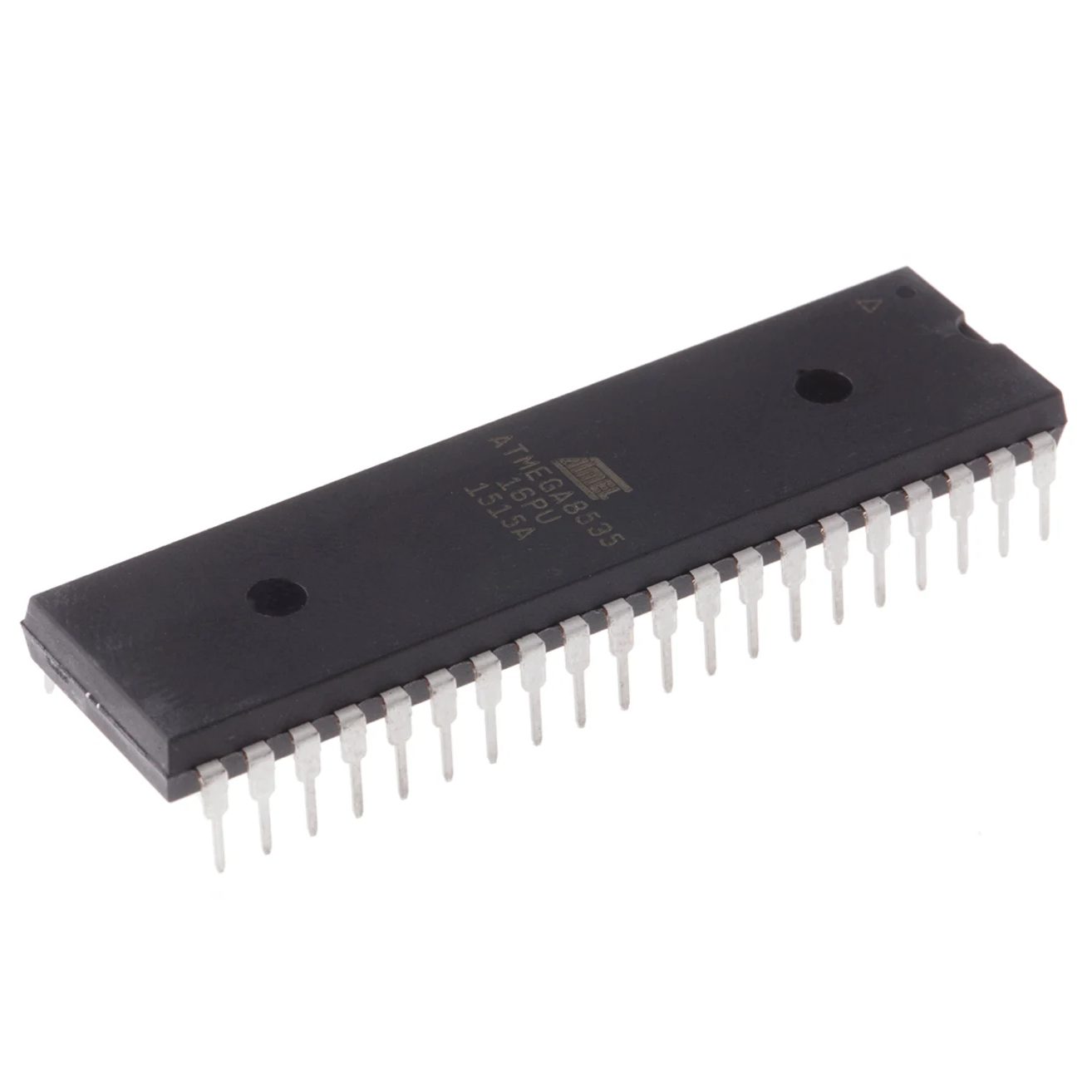

ATMEGA8535-16PU Datasheet
