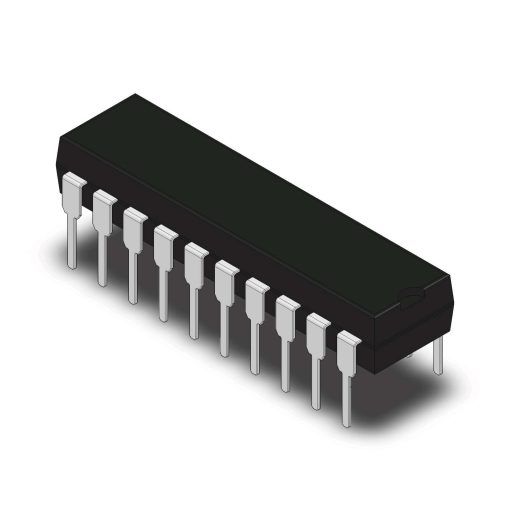

ATTINY26L-8PU 8-Bit AVR Microcontrollers IC PDIP-20
The ATtiny26L-8PU is a compact, low-power 8-bit microcontroller built around Atmel’s AVR enhanced RISC core. Its architecture emphasises code efficiency and fast instruction throughput so that many control tasks execute in a single clock cycle. With an on-chip Flash program memory and integrated SRAM and EEPROM, the device is intended for standalone embedded controllers where modest program size and low energy use matter.
Peripherals are grouped to support mixed analog/digital designs without large external circuitry: a multi-channel 10-bit ADC with selectable gains, two 8-bit timer/counters (one optimized for high frequency PWM), an analog comparator and a Universal Serial Interface for simple serial protocols. The combination of ADC channels, PWM outputs and comparator functions makes the chip suitable for sensing and closed-loop control duties while keeping board area and BOM small.
Power and clock options are flexible: an internal calibrated RC oscillator and selectable low-power sleep modes let designers trade responsiveness for battery life, while the device’s in-system programmable Flash and SPI programming support field updates and on-board debugging. The datasheet frames the ATtiny26L as a cost-effective, highly integrated MCU for small control tasks where simplicity, compactness and low power are required.
Features:
- AVR RISC core up to 118 instructions with mostly single-cycle execution.
- 2 Kbytes in-system programmable Flash (10,000 write/erase cycles).
- 128 bytes EEPROM (100,000 write/erase cycles).
- 128 bytes internal SRAM.
- 10-bit, multi-channel ADC (11 single-ended / 8 differential channels; 7 differential with programmable gain).
- Two 8-bit Timer/Counters with separate prescalers and PWM outputs (including non-overlapping inverted outputs).
- Universal Serial Interface (USI) with start-condition detector (TWI/SMBus via software).
- On-chip analog comparator.
- Internal calibrated RC oscillator and optional PLL for higher peripheral clocks.
- Multiple low-power modes (Idle, ADC Noise Reduction, Power-down, Standby).
Specifications:
| Specification | Value (from datasheet) |
|---|---|
| Program Memory (Flash): | 2 Kbytes (1K × 16) endurance ≥ 10,000 cycles |
| Data EEPROM: | 128 bytes endurance ≥ 100,000 cycles |
| Internal SRAM: | 128 bytes |
| I/O lines / Packages: | Up to 16 programmable I/O lines available in 20-lead PDIP/SOIC and 32-pad QFN/MLF |
| Operating voltage: | ATtiny26L: 2.7–5.5 V ATtiny26: 4.5–5.5 V |
| Speed grades (max CPU): | ATtiny26L: 0–8 MHz ATtiny26: 0–16 MHz |
| ADC: | 10-bit SAR ADC 11 single-ended channels 8 differential channels 7 differential with 20× gain option |
| Timers / PWM: | Two 8-bit Timer/Counters high-frequency PWM with 2 outputs and separate OCRs |
| Memory-mapped registers: | 64 I/O addresses (I/O space) + mapped data space per AVR architecture |
| Power consumption: | Active 1 MHz, VCC=3V: 0.70 mA Idle 1 MHz, 3V: 0.18 mA Power-down: <1 µA |
| Watchdog / Brown-out: | Programmable Watchdog Timer programmable BOD options |
| Programming/Debug: | In-system programmable via SPI (ISP) |
| Package mechanical: | PDIP-20 |
Pinout Diagram:
Footprint Diagram:
Applications:
- Battery-chargers and lighting-ballast control.
- Low-end thermostats and environmental controllers.
- Fire-detectors and simple safety sensors.
- General embedded / compact control tasks (small appliances, consumer devices).
Package Contents:
- 1x ATTINY26L-8PU 8-Bit AVR Microcontrollers IC PDIP-20
