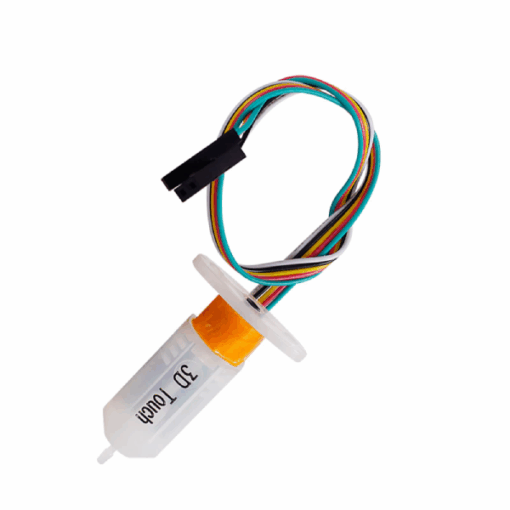

Touch Auto Leveling Sensor for 3D Printers
Features:
- A high precision, touch-based bed leveling sensor intended for use with 3D Printers. It consists of an RC Servo and Micro Switch that maps the build surface, capable of achieving a perfect first layer every time.
- Using the Hall Effect, it probes a defined number of points on the bed, then adjusts the Z-axis height during printing to compensate for variations in the surface. This makes it an ideal solution for warped or deformed build plates that are not perfectly flat.
- The 3DTouch uses a push pin design and is compatible with almost all surface types, including glass, metal, wood and other popular build platforms.
Specifications:
| Parameter | Value |
|---|---|
| Voltage | 5V |
| Current | 15mA |
| Peak Current | 300mA |
| Case Material | Polycarbonate (PC) |
| Case Color | Translucent White |
| Cables Lengths | 200mm & 1000mm |
| PCB & Soldering | RoHS, Lead Free (Pb Free) |
| Wires | Green (GND) Red (+5V) Orange (control signal) Black (GND) White (Zmin) |

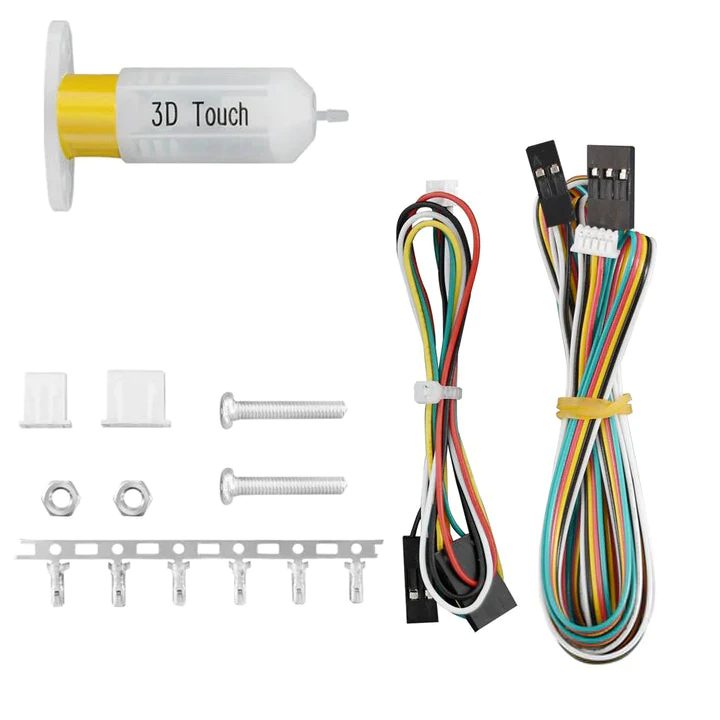

Package Includes:
- 1x Touch Auto Leveling Sensor
- 1x 200 mm cable.
- 1x 1000 mm cable.
- 1x XH 2.54 mm 2-pin terminal
- 1x XH 2.54 mm 3-pin terminal
- 2x M3 Screws
- 2x M3 Nuts
