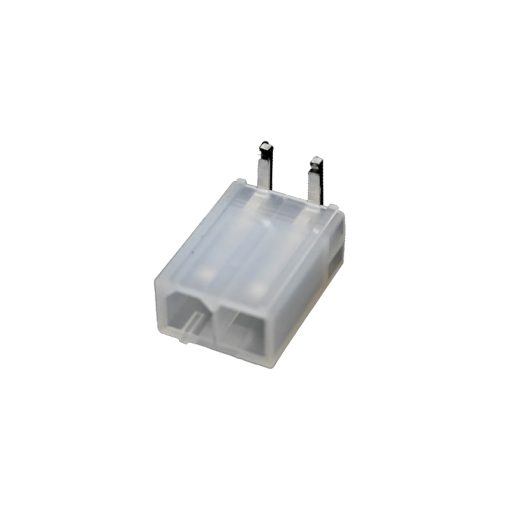

Automotive Connector Male Header Through Hole Right Angle 5569-1x2AW-4.2mm 2 Pin
Compact and durable, this 2‑circuit right-angle male PCB header is engineered for high-current, high-voltage automotive and industrial applications. Featuring a 4.2 mm pitch and peg-free through-hole design, it supports up to 9 A per contact (13 A in mated assemblies) at 600 V AC/DC. The housing is molded from nylon (UL 94 V‑0) and the contacts are brass with tin plating, offering excellent insulation resistance (≥ 1,000 MΩ) and a dielectric rating of 1,500 VAC for one minute. It mates seamlessly with standard 5557-series female connectors and is fully mechanically compatible with Molex part 0469990703—the Mini-Fit Jr. 2-position right-angle, peg-free header—making it ideal for replacement or integration into existing Molex Mini-Fit Jr. setups.
Features
- Right-angle, single-row 2-pin configuration to save board space.
- 4.2 mm pitch ideal for wire-to-board power and signal interconnects.
- Rated for 9 A per contact (13 A in mated assemblies) at 600 V AC/DC.
- Tin-plated brass pins with ≥ 1,000 MΩ insulation resistance.
- Rugged nylon UL 94 V‑0 body rated for –40 °C to +105 °C.
- Peg-free through-hole mounting for flexible board design.
- Compatible with Molex 0469990703 right-angle header.
Specifications
| Parameter | Value |
|---|---|
| Model | 5569‑1×2AW‑4.2 mm |
| Circuits | 2 (1×2 configuration) |
| Pitch | 4.2 mm |
| Current Rating | 9 A continuous (13 A mated) |
| Voltage Rating | 600 V AC/DC |
| Insulation Resistance | ≥ 1,000 MΩ |
| Dielectric Withstand Voltage | 1,500 VAC, 1 min |
| Housing Material | Nylon (UL 94 V‑0) |
| Contact Material/Finish | Brass, tin-plated |
| Operating Temperature | –40 °C to +105 °C |
| Mounting Style | Right-angle, through-hole, peg-free |
| Compatible Molex Part | 0469990703 |
Dimensions
Applications
- Vehicle power harness and battery connectors.
- Industrial control systems and power distribution modules.
- Space-constrained PCBs that require robust, right-angle connectors.
Package Contents
- 1× Automotive Connector Male Header Through Hole Right Angle 5569-1x2AW-4.2mm 2 Pin.
