Automotive Connector Male Header Through Hole Right Angle 5569-2x2AW-4.2mm 4 Pin
Compact and rugged, this Automotive Connector Male Header Through Hole Right Angle 5569-2x2AW-4.2mm 4 Pin is tailored for high-current automotive and industrial applications. Featuring a 4.2 mm pitch and a peg-free through-hole design, it supports up to 9 A per contact (13 A in mated assemblies) at 600 V AC/DC. The nylon UL 94 V‑0 housing and tin-plated brass contacts offer excellent insulation (≥ 1,000 MΩ) and a dielectric withstand of 1,500 VAC for 1 minute, operating reliably from –40 °C to +105 °C. It mates effortlessly with standard 5557-series female receptacles and is fully mechanically compatible with the Molex 353180420 and TE Connectivity 1586041‑4 right-angle male headers, allowing seamless integration into existing designs.
Features
- Right-angle dual-row, 4-pin configuration that saves board space.
- 4.2 mm pitch optimized for power and signal applications.
- Rated at 9 A continuous (13 A mated) and up to 600 V AC/DC.
- Tin-plated brass pins with insulation resistance ≥ 1,000 MΩ.
- UL 94 V‑0 nylon housing for −40 °C to +105 °C operation.
- Peg-free through-hole design for easy mounting.
Specifications
| Parameter | Value |
|---|---|
| Model | 5569‑2×2AW‑4.2 mm |
| Circuits | 4 (2 rows × 2 columns) |
| Pitch | 4.2 mm |
| Current Rating | 9 A continuous (13 A mated) |
| Voltage Rating | 600 V AC/DC |
| Insulation Resistance | ≥ 1,000 MΩ |
| Dielectric Withstanding Voltage | 1,500 VAC, 1 min |
| Housing Material | Nylon, UL 94 V‑0 |
| Contact Material/Finish | Tin-plated brass |
| Operating Temperature | –40 °C to +105 °C |
| Mounting Style | Right‑angle through‑hole, peg‑free |
| Compatible Male Headers | Molex 353180420, TE Connectivity 1586041‑4 |

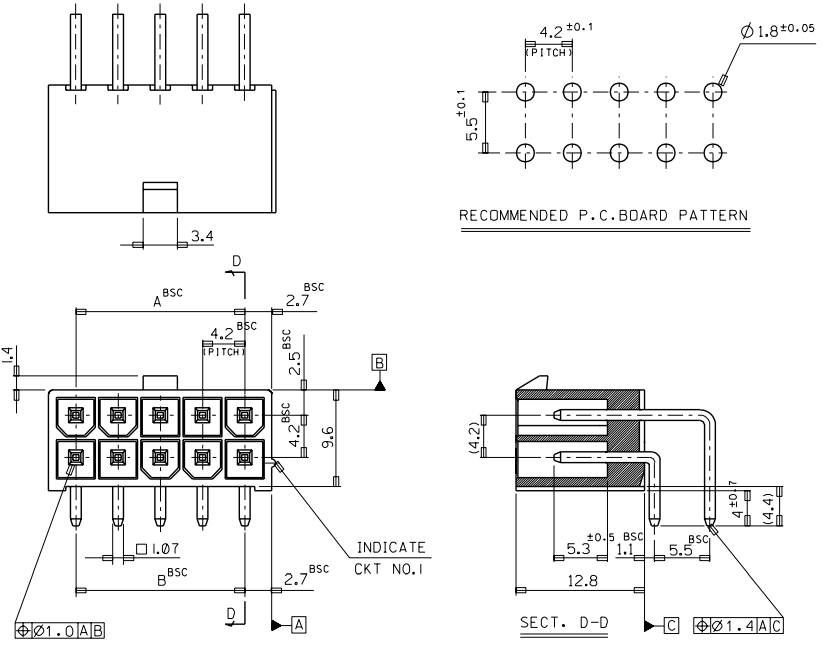

Dimensions
Applications
- Automotive wiring harnesses and ECU power assemblies.
- Industrial control panels and battery management systems.
- Any application with limited PCB space but requiring high-current connector reliability.
Package Contents
- 1× Automotive Connector Male Header Through Hole Right Angle 5569-2x2AW-4.2mm 4 Pin.
