MicroZed™ is a low-cost SOM that is based on the AMD Xilinx Zynq®-7000 SoC. In addition to the Zynq-7000 SoC, the module contains the common functions and interfaces required to support the core of most SoC designs, including memory, configuration, Ethernet, USB, and clocks. On the bottom side of the module, MicroZed contains two 100-pin I/O headers that provide connection to two I/O banks on the programmable logic (PL) side of the Zynq-7000 SoC device. When plugged onto a user designed baseboard or carrier card, these 100-pin connectors provide connectivity between the Zynq-7000 SoC PL I/Os and the user circuits on the carrier card. MicroZed also includes on-board power regulation that supports 5 V input with an option to support 12 V input.
Industrial Temperature MicroZed SOMs are built with components supporting extended temperatures of -40 to +85°C, with the exception of the use of the microSD card connector. Due to the configurability of the Zynq device, the user must perform final temperature testing validation.

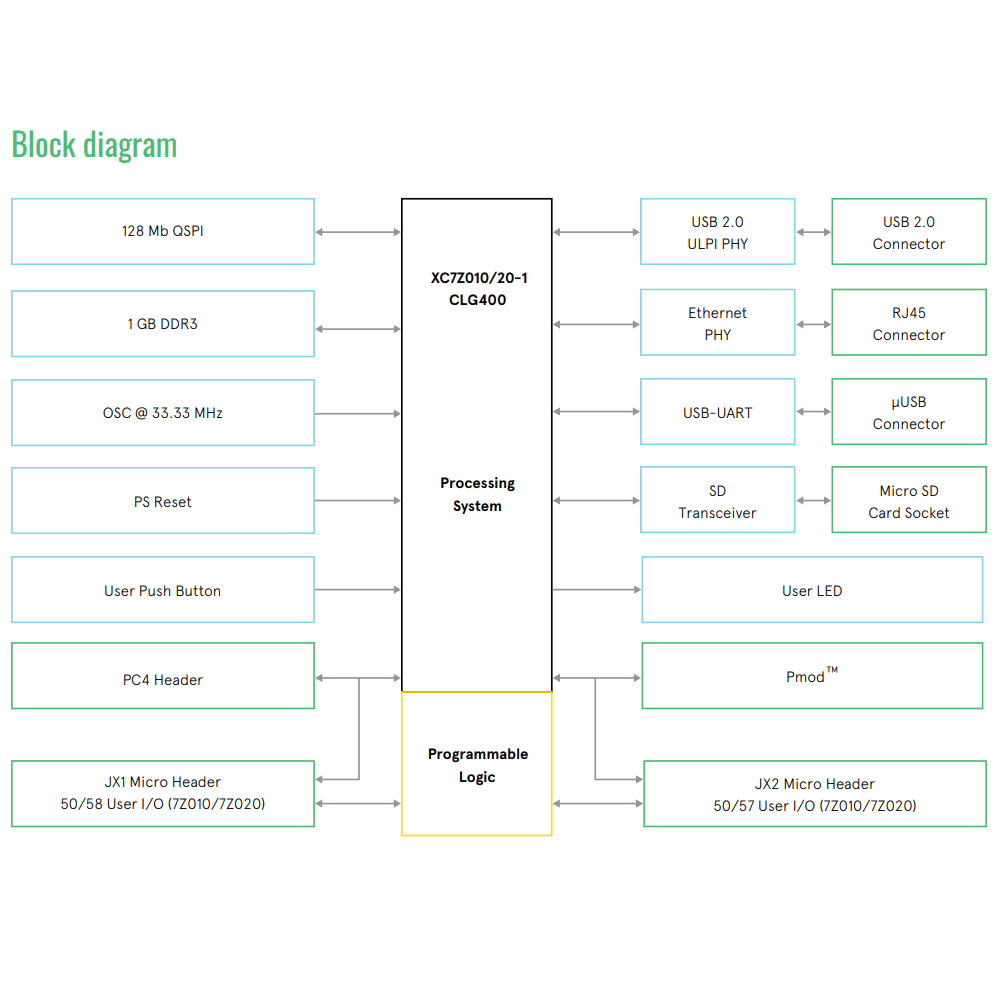

Key Features
- SoC
- XC7Z020-1CLG400C
- Memory
- 1 GB of DDR3 SDRAM
- 128 Mb of QSPI Flash
- Micro SD card interface
- Communications
- 10/100/1000 Ethernet
- USB 2.0
- USB-UART
- User I/O (via dual board-to-board connectors)
- 123 User I/O (115 PL, 8 PS MIO)
- PL I/O configurable as up to 55 LVDS pairs or 115 single-ended I/O
- Other
- 2×6 Digilent Pmod® compatible interface providing 8 PS MIO connections for user I/O
- AMD Xilinx PC4 JTAG configuration port
- PS JTAG pins accessible via Pmod or I/O headers
- 33.33 MHz oscillator
- User LED and push button
