DT-830D Mini Digital Multimeter with Buzzer Voltage Ampere Meter Tester
The multimeter enables measuring DC voltage up to 1000 V and AC voltage up to 750 V, DC current up to 10A and resistance up to 2 MΩ. The device has the function of testing transistors and diodes.
Features:
- 3 1/2 digits, 7-segment, 0.5″high LCD Display.
- Max display: 1999, Auto polarity display.
- Small and compact design.
- Overload protection on all ranges.
- Sampling 2~3 times readings per second.
- Diode assembly test /Transistor hFE test.
- Low battery voltage indication.
Specifications:
| PARAMETER | RANGE |
| DC voltage | 200 mV / 2000 mV / 20 V / 200 V / 1000 V |
| AC voltage | 200 V / 750 V |
| DC | 2000 µA / 20 mA / 200 mA / 10 A |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2000 kΩ |
| Transistor tester | yes |
| Tester of diodes | yes |
| Battery indicator | yes |
| Display | LCD 1999 |

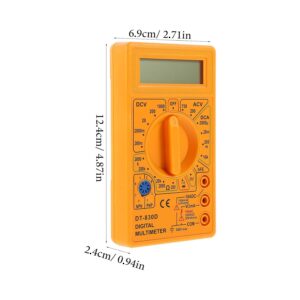

| Dimensions | 124 x 69 x 24 mm |
| Weight | 150 g |
Includes:

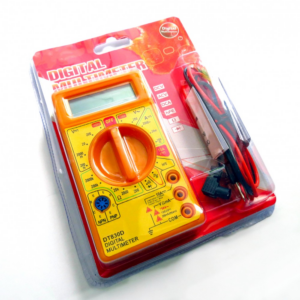

- Multimeter
- Test leads
- Instruction
