Axial Lead Type Inductor 1.8mH 1W

Axial Lead Type Inductor 1.8mH 1W

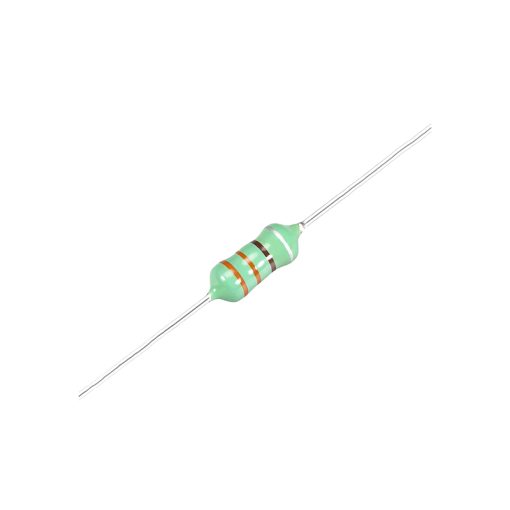

This component is a 1.8 millihenry (mH) axial lead fixed inductor, a fundamental passive component designed for through-hole mounting on printed circuit boards (PCBs). Its construction features a cylindrical body with a wire coil wound around a core, and it is characterized by two leads that extend from opposite ends along its central axis. This classic axial design allows the component to lie flat against the board’s surface, facilitating efficient use of board space.

The primary function of this inductor is to provide a specific, relatively high inductance value to an electronic circuit. It operates by storing energy in a magnetic field and resists changes in current flow, making it essential for applications requiring energy storage, filtering of low-frequency noise, and impedance matching. The component is engineered to maintain its 1.8mH value under specified operating conditions while handling the associated electrical currents.

Manufactured to be compact and robust, the inductor is coated with a protective layer of epoxy resin. This coating ensures durability and provides long-term resistance to humidity, contributing to the component’s reliability and long service life in various environments. The nominal inductance value is indicated on the component itself using a standardized color code system, which allows for easy identification during the PCB assembly process and circuit debugging.

Features:

• Compact, small, and light-weight design.
• Wide range of available inductance values.
• High Q (Quality Factor) and self-resonant frequencies (SRF).
• Taping type convenient for automatic insertion.
• Epoxy resin coating ensures humidity resistance and long life.

Specifications:

Applications:

• Televisions (TVs).
• Radios and Radio Transceivers.
• Telephones.
• Various Other Electronic Products.

Package Contents:

• 1x Axial Lead Type Inductor 1.8mH 1W

Datasheet
