B4B-PH-S JST PH Data Terminal Male 4 Pin Connector Header 2mm

B4B-PH-S JST PH Data Terminal Male 4 Pin Connector Header 2mm

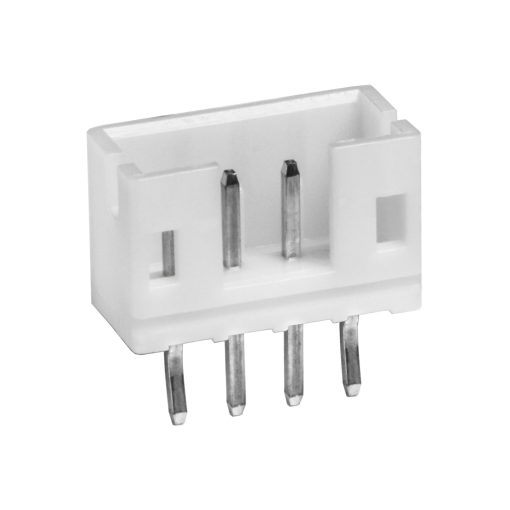

The B4B-PH-S JST PH Data Terminal Male 4 Pin Connector Header 2mm is a reliable, top-entry through-hole header designed for wire-to-board applications. Part of the JST PH series, this connector features a 2mm pitch, offering a compact yet robust solution for PCB connections. It is constructed with tin-plated copper alloy posts for excellent conductivity and durability, and its top-entry design ensures straightforward mating with compatible receptacles. With a current rating of 2A AC/DC and a voltage rating of 100V AC/DC, the B4B-PH-S delivers consistent performance in various electronic applications.

Features

• Top-entry design.
• 2mm pitch for high-density PCB mounting.
• Shrouded header for secure and reliable mating.
• Through-hole mounting for strong mechanical stability.
• Tin-plated copper alloy posts for superior electrical conductivity.

Specifications

Dimensions

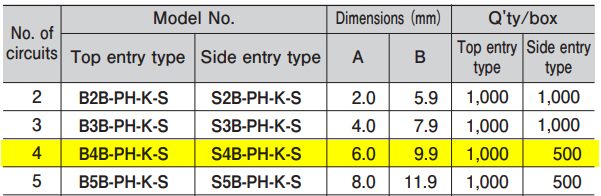

Note: the K you see in the model is for the clinched variant of this connectors. Please refer to the datasheet for more information.

Applications

• Consumer electronics.
• Industrial control systems.
• Automotive electronics.
• Medical devices.
• High-density wire-to-board connection needs.

Package Contents

• 1x B4B-PH-S JST PH Data Terminal Male 4 Pin Connector Header 2mm.

Documents

• JST PH Data Terminal Datasheet.
• B4B-PH-S KiCAD Files.
