BA159 500nS 1kV 1A DO-204AL Rectifier Diode
The BA159 is a high-efficiency, fast-switching rectifier. Designed for reliability in demanding environments, this diode features high forward surge capability and low leakage current, making it an ideal choice for power management in consumer and telecommunications electronics.
✅Features
- Fast switching for high efficiency
- Low forward voltage drop
- Low leakage current
- High forward surge capability
📜📚Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Maximum Ratings (at TA = 25°C unless otherwise noted) | |||
| Maximum repetitive peak reverse voltage | VRRM | 1000 | V |
| Maximum RMS voltage | VRMS | 700 | V |
| Maximum DC blocking voltage | VDC | 1000 | V |
| Maximum average forward rectified current (0.375″ lead length at TA = 55°C) | IF(AV) | 1.0 | A |
| Peak forward surge current (10 ms single half sine-wave) | IFSM | 20 | A |
| Operating junction temperature range | TJ | -65 to +125 | °C |
| Storage temperature range | TSTG | -65 to +150 | °C |
| Electrical Characteristics (at TA = 25°C unless otherwise noted) | |||
| Maximum instantaneous forward voltage (at 1.0 A) | VF | 1.3 | V |
| Maximum DC reverse current (at rated DC blocking voltage) | IR | 5.0 | μA |
| Maximum reverse recovery time (IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A) | trr | 500 | ns |
| Typical junction capacitance (at 4.0 V, 1 MHz) | CJ | 12 | pF |
| Mechanical Data | |||

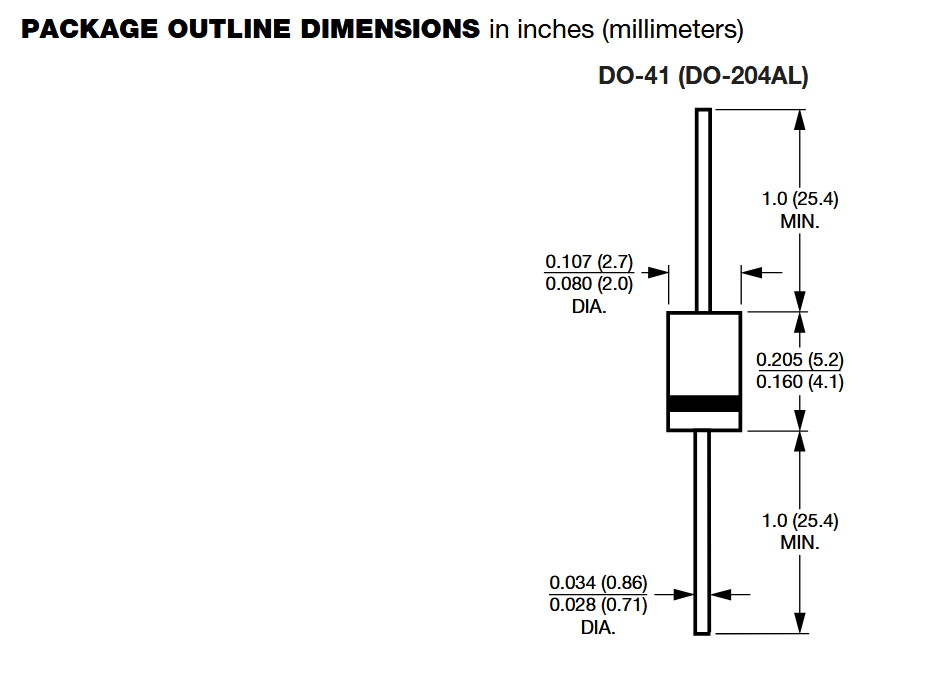

| Package Style | – | DO-41 (DO-204AL) | – |
| Flammability Rating | – | UL 94 V-0 | – |
💻Applications
- Power Supplies
- Inverters & Converters
- Telecommunications
🎁Package Content
- 1 x BA159 500nS 1kV 1A DO-204AL Rectifier Diode
