Description:
The Banana Pi M2 Zero is an ultra compact single board computer which measures only 60mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3(option H2+ H5) processor, with 512MB RAM. It‘s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.
Key Features:
- Quad Core ARM Cortex A7 CPU H3
- 512MB DDR3 SDRAM
- WiFi & Bluetooth on Board
- Mini HDMI
Banana Pi M2 Zero: Low-Cost, Quad Core SBC

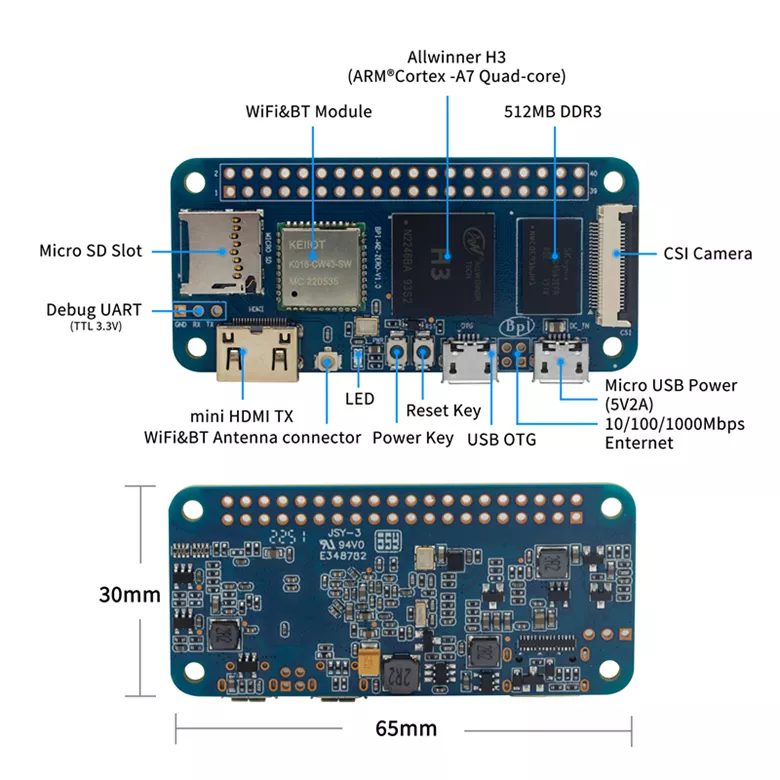

Hardware interface:
Haredware Spec:
| HardWare Specification of Banana pi BPI-M2 zero | |
| Module | Banana Pi BPI-M2 Zero |
| CPU | H3 Quad-core Cortex-A7 H265/HEVC 1080P |
| GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 512M DDR3(shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) |
| Onboard Network | NOPE (but can extension with PIN define) |
| PoE power | NOPE |
| Onboard flash | NOPE |
| Onboard WIFI | SDIO AP6212（option AP6181、AP6335） |
| Video decoding | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
| Video input | A CSI input connector Camera |
| Video Outputs | mini HDMI 1.4,1080P@30fps, DHCP |
| Audio Output | Mini HDMI |
| Power Source | Micro USB with 5V/2A |
| USB 2.0 Ports | one USB 2.0 OTG |
| Buttons | Power Button, Reset Button |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi 3 |
| uart GPIO(1×3) pin | UART, ground |
| LED | Power led & Status led |
| IR | N/A |
| Supported OS | android linx |
| Product size | 65mm × 30mm |
| Weight | 15g |
Online Wiki developments：https://wiki.banana-pi.org/Banana_Pi_BPI-M2_ZERO
