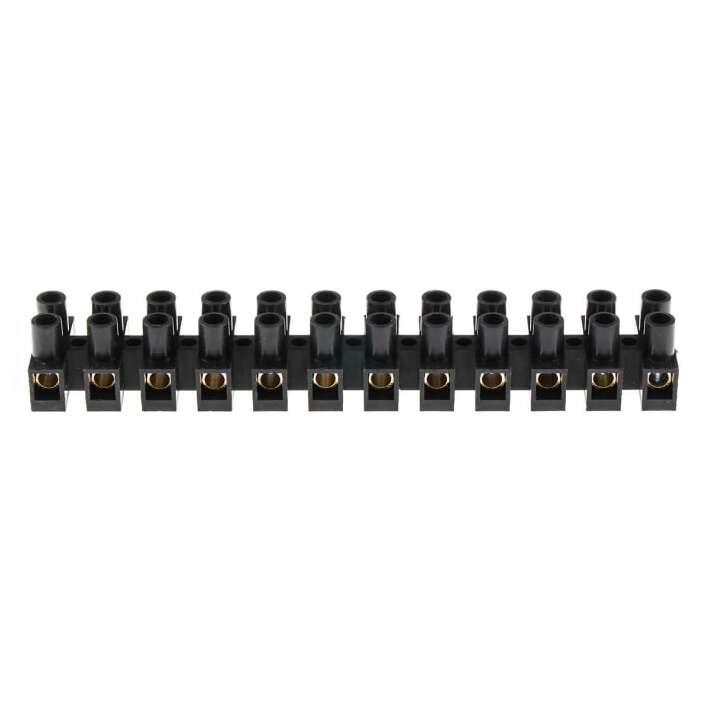

Barrier Strip Terminal Block 12mm 20A 380V
Compact 12mm barrier strip terminal block, rated for 20A and 380V, ideal for secure electrical connections in various applications.
35.00 EGP
Terminal Strip Straight, 12-way, 2 Row, 12 mm Fixing Centres, 20 A, 380 V, length 136 mm, Black
Make wire-to-board and wire-to-wire connections without the need for plugs with this terminal strip. It’s modular and insulated, with 12 contacts organized in two side-by-side rows.
The strip is housed in a polypropylene cover, offering excellent resistance to chemicals, fatigue and heat. The unit is quick to connect and disconnect – simply press the wire against the conductor strip in the block with a screwdriver. To make connecting electrical components even easier, it comes with a clamping component and a conducting brass strip.
Terminal strips make fixed connections that are readily accessible for troubleshooting. They can be used in any electrical situation where wires need to be joined together. Plus, they’re useful for organizing connections into a logical arrangement.
Specifications:
- Number of Ways: 12
- Current Rating: 32A
- Wire Size: 6 mm²
- Termination Method: Screw
- Material: POLYPROPYLENE
- Voltage Rating: 380 V
- Pitch: 12mm
- Wire Entry Hole Diameter: 4.5mm
- Fixing Hole Diameter: 5mm
- Colour: Black
- Maximum Operating Temperature: +80°C
- Dimensions of 136 mm (L) x 20 mm (W) x 18 mm (H)
