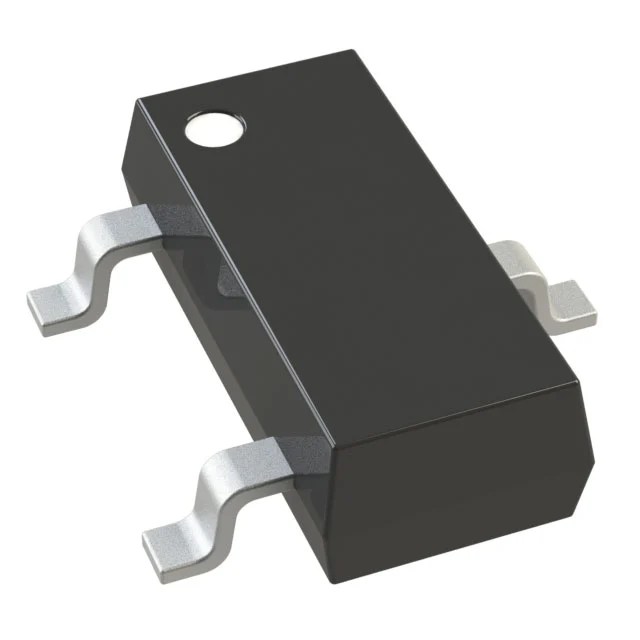

BAS16TA SMD Diode 75V 200mA SOT-23-3
The BAS16TA is a high-performance small-signal diode housed in the SOT-23-3 package. With a maximum reverse voltage of 75V and a forward current rating of 200mA, it is designed for use in high-speed switching applications, protecting circuits from voltage spikes and providing efficient signal rectification. The BAS-16TA offers low forward voltage drop and fast switching times, making it suitable for a wide range of applications, including signal processing, voltage regulation, and protection circuits. Its compact form factor ensures compatibility with modern, space-constrained designs.
Features:
- Fast switching speed with 4ns maximum reverse recovery time.
- Low forward voltage drop up to 1.25V at 150mA.
- Low leakage current of 1µA maximum at 75V.
- Total capacitance of 2pF at 0V for minimal parasitic effects.
Specifications:
| Parameter | Value |
|---|---|
| Reverse Voltage (VR) | 75V |
| Peak Repetitive Reverse Voltage (VRRM) | 75V |
| Average Rectified Current (Io) | 200mA |
| Forward Continuous Current (IFM) | 300mA |
| Forward Voltage (VF) at 50mA | 1V |
| Reverse Recovery Time (tRR) | 4ns |
| Total Capacitance (CT) | 2pF |
| Power Dissipation (PD) | 350mW |
| Thermal Resistance (RθJA) | 357°C/W |
| Operating Temperature Range | -55°Cto+150°C |
| Package Type | SOT-23-3 |
Foot print:
Applications:
- General-purpose switching in consumer electronics.
- High-speed signal rectification in communication devices.
- Logic level shifting in digital circuits.
- Protection against voltage transients in power supplies.
- Automotive electronics (with qualified variants).
Package Include:
1x BA-S16TA SMD Diode 75V 200mA SOT-23-3
