Battery Kit Breadboard 9V Input to 5V/9V Output

Battery Kit Breadboard 9V Input to 5V/9V Output

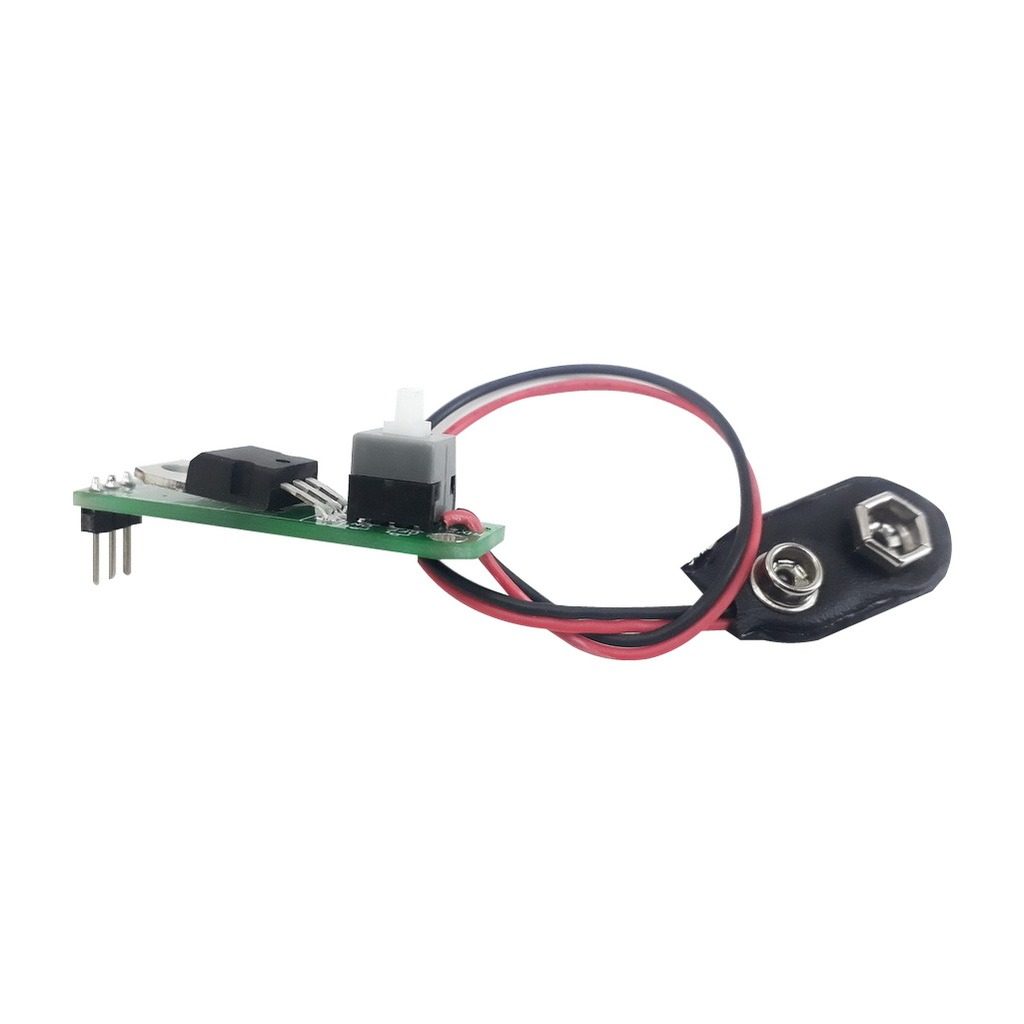

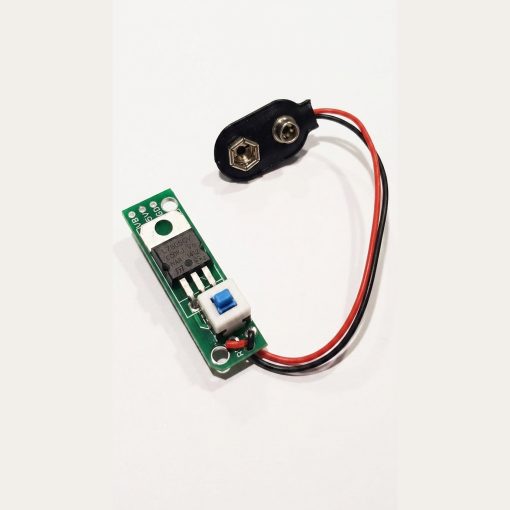

This breadboard power kit connects to a 9 V battery via included snap clip and produces both regulated 5 V and raw 9 V rails accessible via pin headers. Featuring an onboard power switch and a 7805 linear regulator, the 42 mm × 12 mm PCB enables clean, reliable power for prototyping. Simply plug onto a standard breadboard to power microcontrollers and circuits with 5 V logic and auxiliary 9 V supply.

Features

• Converts 9 V battery input to dual outputs: regulated 5 V and direct 9 V.
• Includes onboard ON/OFF switch for easy control.
• Utilizes a 7805 voltage regulator for stable 5 V output.
• Compact PCB design, 42 mm × 12 mm, fits standard breadboards.

Specifications

Applications

• Powering Arduino, sensors, and logic circuits from a 9 V battery.
• Providing both 5 V logic and 9 V power for diverse prototype setups.
• Ideal for mobile experiments and field-testing electronics.

Package Contents

• 1x Battery Kit Breadboard 9V Input to 5V/9V Output.

Battery 9v is not included with this kit – you need to buy it separately (Click here)

Datasheet

• 7805 IC.
