BC109 NPN General Purpose Transistor TO-92 (20V, 0.1A)

Specifications:

• Type Designator: BC109
• Material of Transistor: Si
• Polarity: NPN
• Maximum Collector Power Dissipation (Pc): 0.3 W
• Maximum Collector-Base Voltage |Vcb|: 30 V
• Maximum Collector-Emitter Voltage |Vce|: 20 V
• Maximum Emitter-Base Voltage |Veb|: 5 V
• Maximum Collector Current |Ic max|: 0.1 A
• Max. Operating Junction Temperature (Tj): 175 °C
• Package: TO-92

Applications of BC109 NPN General Purpose Transistor:

• It is used in switching devices.
• It is used as an amplifying device.
• It is used in DIY kits.
• It is used in Electronic projects.

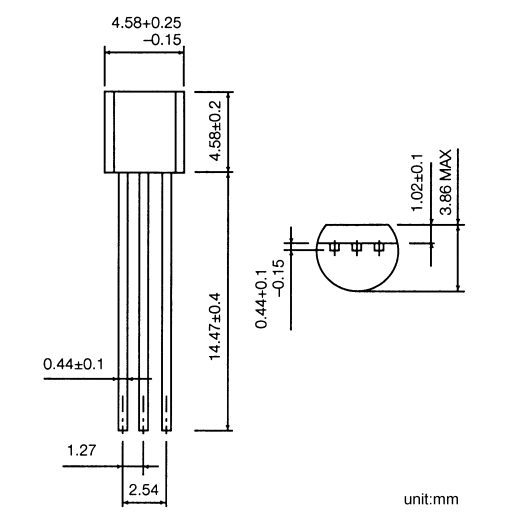

2D Representation (TO-92)
