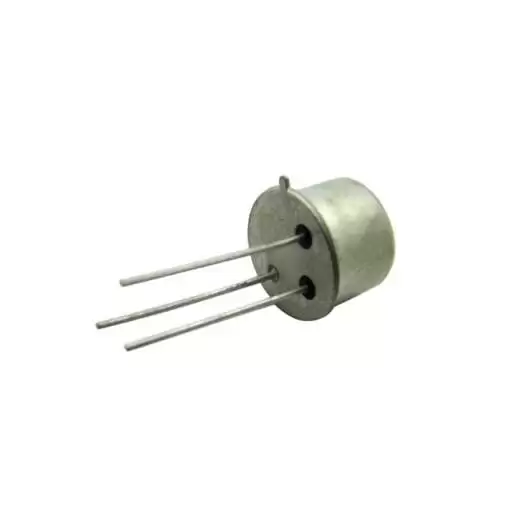

BC160-16 PNP Power Switching Transistor 40V 1A 0.8W TO-39 Metal Package

• Type: PNP
• Collector-Emitter Voltage, max: -40 V
• Collector-Base Voltage, max: -40 V
• Emitter-Base Voltage, max: -5 V
• Collector Current − Continuous, max: -1 A
• Power Dissipation: 0.8/4W
• DC Current Gain (h_fe): 100 to 250
• Transition Frequency, min: 50 MHz
• Current gain: 100…250
• Operating and Storage Junction Temperature Range: -65 to +200 °C

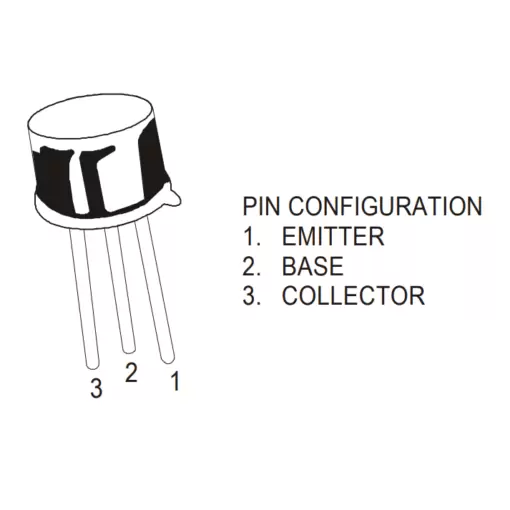

• Package: TO-39

BC160-16 Datasheet
