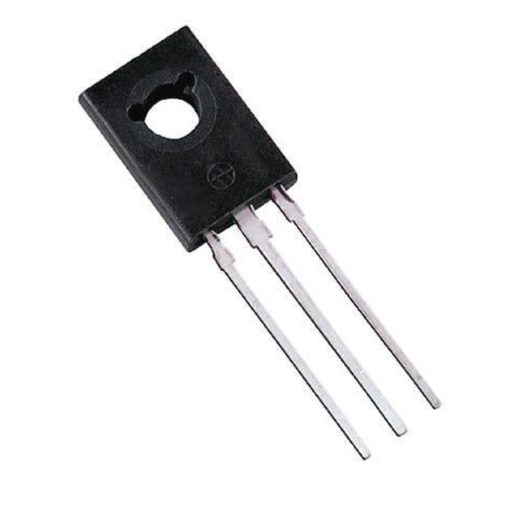

BD137 NPN Bipolar BJT Transistor 60V, 1.5A TO-126-3

BD137 NPN Bipolar Medium Power Transistor – TO-126 Package

Designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits. BD137 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE. This Product is known as BD137, BD137 NPN Bipolar Medium Power Transistor.

Features/Specs:

• Product Type: BJTs – Bipolar Transistors
• Product Category: Bipolar Transistors – BJT
• Transistor Polarity: NPN
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 60 V
• Collector- Base Voltage VCBO: 60 V
• Emitter- Base Voltage VEBO: 5 V
• Collector-Emitter Saturation Voltage: 500 mV
• Maximum DC Collector Current: 1.5 A
• Pd – Power Dissipation: 1.25 W
• Continuous Collector Current: 1.5 A
• Minimum Operating Temperature: -55°C
• Maximum Operating Temperature: +150°C
• Mounting Style: Through Hole
• Package/Case: TO-126-3

Applications:

• Audio Amplifiers
• Switching Loads under 1.5A or 1500mA
• Battery Chargers Circuits
• Power Supply Circuits
• Motor Driver Circuits
• Darlington Pairs

BD137 Datasheet
