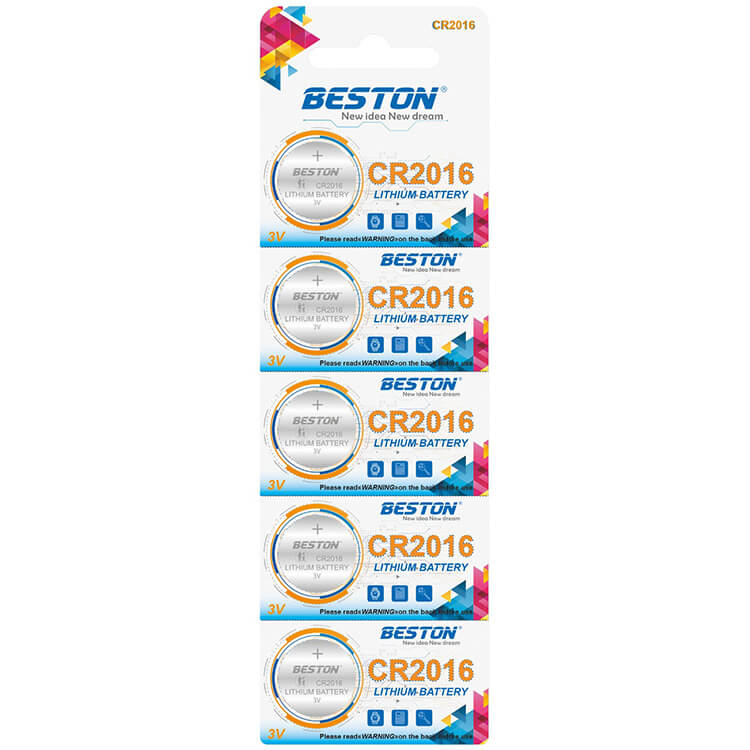

BESTON CR2016 Coin Cell Lithium Battery 3V 80mAh
The BESTON CR2016 Coin Cell Lithium Battery 3V 80mAh is a miniature primary lithium button cell, offering a nominal 3V output and approximately 80mAh capacity, designed for low-drain electronics where compact form and long shelf life are essential.
Features
- Nominal voltage of 3V using a lithium manganese dioxide (Li/MnO₂) chemistry for stable discharge.
- Capacity around 80mAh for sustained operation in small devices.
- Minimal self-discharge (under 1% per year) enabling multi-year storage.
- Wide operating temperature range, typically from –30 °C to +70 °C.
- Typical continuous discharge current ~0.1 mA, suitable for low-power gadgets.
- Compact form factor (Ø20 mm × 1.6 mm), standard for CR2016.
Specifications
| Specification | Details |
|---|---|
| Brand | Beston |
| Model | BST-CR2016 |
| Battery Type | Lithium Coin |
| Nominal Voltage | 3V |
| Capacity | 80mAh |
| Diameter | 20mm |
| Thickness | 1.6mm |
| Shelf Life | Up to 10 years |
| Operating Temperature | –30 °C to +70 °C |
Applications
- Real-time clock modules and memory backup.
- Small-format electronics: calculators, electronic toys, wearable sensors.
- Key fobs and other low-drain, long-life portable devices.
- Automotive electronics such as tire pressure sensors and remote controls.
Package Contents
- 1x BESTON CR2016 Coin Cell Lithium Battery 3V 80mAh.
