Bipolar 2SB834 BJT Transistor PNP 60V 3A TO-220

The Bipolar 2SB834 BJT Transistor PNP 60V 3A TO-220 is a PNP bipolar junction transistor (BJT) in a TO-220 package, designed for medium power amplification and switching. It supports a collector-emitter voltage of -60V and a collector current of -3A, making it suitable for use in audio amplifier stages, voltage regulators, and general-purpose power switching. With its reliable performance and efficient heat dissipation through the TO-220 case, the 2SB834 ensures stable operation in various electronic circuits where moderate voltage and current handling are required.

Features

• PNP silicon power transistor in TO-220 package.
• Collector-Emitter Voltage (Vce) up to -60V.
• Continuous Collector Current (Ic) up to -3A.
• Power Dissipation (Ptot) up to 30W with proper heat sink.
• Suitable for audio power amplifiers and general power switching.
• High DC current gain for stable amplification performance.
• Complementary to NPN type for push-pull amplifier stages.

Pin Configuration

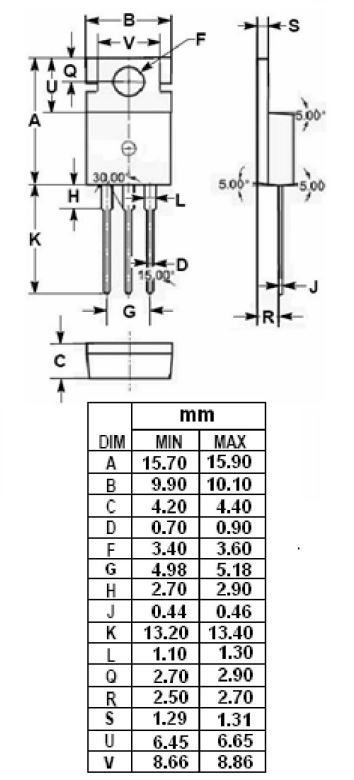

Dimensions

Symbol Footprint CAD Model

Specifications

Parameter	Value
Category	(Bipolar) BJT Transistor
Transistor Type	PNP
Datasheet	2SB834
Mounting Type	Through Hole
Package / Case	TO-220
Packaging	Tube
Number of Terminations	3Pin
Collector-Base Voltage	-60V
Collector-Emitter Voltage	-60V
Emitter-Base Voltage	-5V
Collector Current	-3A
Power Dissipation	30W
DC Current Gain	60-320
Transition Frequency	4MHz
Operating Temperature	-55°C – 150°C
Storage Temperature	-55°C – 150°C

Applications

• Audio power amplifiers.
• Voltage regulators.
• Switching circuits.
• Push-pull amplifier stages.
• Motor drivers.
• Signal amplification.
• Relay drivers.

Package Contents

• 1 X  Bipolar 2SB834 BJT Transistor PNP 60V 3A TO-220

Datasheet

• 2SB834
