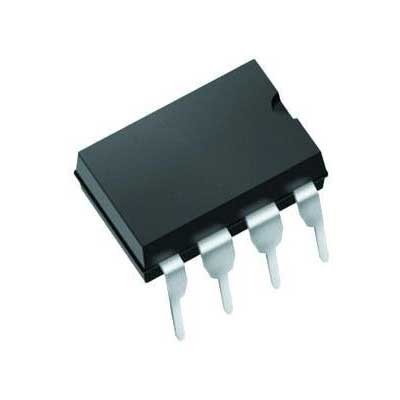

BR24C01A 1Kbit Serial I²C-bus EEPROM memory IC DIP-8
The BR24C01A from Rohm is a 2-wire serial EEPROM designed for low-power, non-volatile data storage in embedded systems. Utilizing CMOS technology, it provides 1Kbit (128 words x 8 bits) of memory accessible via an I²C bus interface, with automatic address incrementing and erase-before-write operations. The device supports up to 8 units on a single bus through slave address pins and includes noise filters on SCL and SDA for robust communication. It operates over a wide voltage range with minimal current draw, making it suitable for battery-powered applications. Write protection at low Vcc ensures data integrity, while the DIP-8 package facilitates easy through-hole mounting in prototyping and production.
Features:
- 1Kbit memory organized as 128 words x 8 bits.
- I²C bus compatible two-wire serial interface.
- Low power operation with 0.2mA typical active current at 5V.
- Standby current of 1.0µA typical at 5V.
- Automatic erase-before-write and page write buffer up to 4 bytes.
Specifications:
| Parameter | Value |
|---|---|
| Memory Size | 1Kbit (128×8) |
| Interface | I²C (2-wire serial) |
| Supply Voltage | 2.7VDC to 5.5VDC |
| Clock Frequency | 100kHz |
| Write Cycle Time | 10ms (at 4.5VDC to 5.5VDC), 25ms (at 2.7VDC to 4.5VDC) |
| Active Current | 1.0mA (max at 5.5VDC, 100kHz) |
| Standby Current | 2.0µA (max at 5.5VDC) |
| Input High Voltage | 0.7xVcc (min) |
| Input Low Voltage | 0.3xVcc (max) |
| Output Low Voltage | 0.4V (max at 3.0mA, 5.5VDC) |
| Endurance | 100000 cycles |
| Data Retention | 10 years |
| Operating Temperature | -40°C to 85°C |
| Package Type | DIP-8 |
| Mounting Type | Through Hole |
Pin Configuration:
Applications:
- Configuration data storage in microcontrollers and embedded systems.
- Calibration data for sensors and measurement devices.
- Backup memory for real-time clocks (RTC).
- Small data logging in consumer electronics.
- Industrial control systems requiring non-volatile memory.
- Battery-powered devices needing low-power data retention.
Package Include:
1x BR24C01A 1Kbit Serial I²C-bus EEPROM memory IC DIP-8
