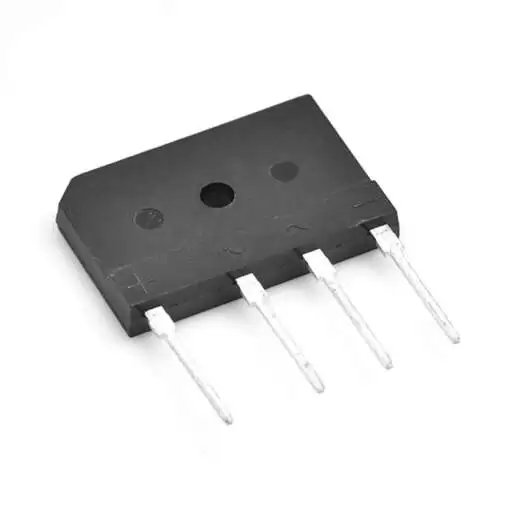

Features
- Low reverse leakage
- High forward surge capability
- A Surge overload rating:250 Amperes peak
- Lead and body according with RoHS standard
Mechanical Data
- Case: Molded Plastic
- Polarity: Symbols molded or marked on body
- Mounting Position: Any
Specifications
| Parameter | Symbol | D15SB60 | unit |
| Maximum repetitive peak reverse voltage | VRRM | 600 | V |
| Maximum RMS bridge input voltage | VRMS | 420 | V |
| Maximum DC blocking voltage | VDC | 600 | V |
| Maximum average forward rectified output current at TC=100°C | IF(AV) | 15 | A |
| Peak forward surge current 8.3 ms single half sine-wave | IFSM | 250 | A |
| Typical thermal resistance | ReJA | 22 | °C/W |
| Operating junction and storage temperature range | TJ, TSTG | -55 to + 150 | °C |
