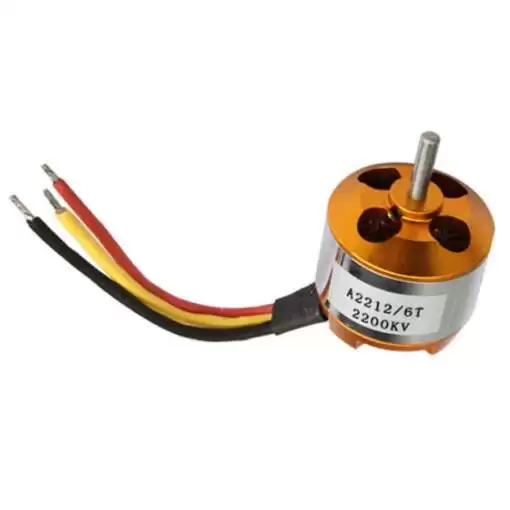

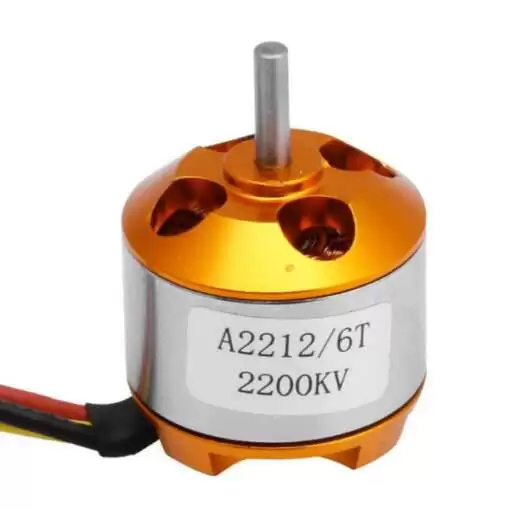

A2212/6T 2200KV Brushless DC Motor For RC Quadcopters Planes Boats Vehicles and DIY Kits
This A2212/6T 2200KV Brushless DC Motor For RC Quadcopters Planes Boats Vehicles and DIY Kits.
BRUSHLESS DC MOTOR is one of the most popular high-speed brushless motor designed specifically for RC hobbyists. The motor is outrunner type where outside case rotates while inside stays fixed. It is one of the popular models in the market because it’s low cost. It is preferred for small drones and planes. The motor features a 3.17mm hardened steel shaft and dual ball bearings for a smooth and steady rotating motion. As it is a 3-phase motor, speed and efficiency are high.
How to read the Motor Code
A2212/6T: It means 22mm motor diameter, 12mm motor shaft height and 6 turns per pole.

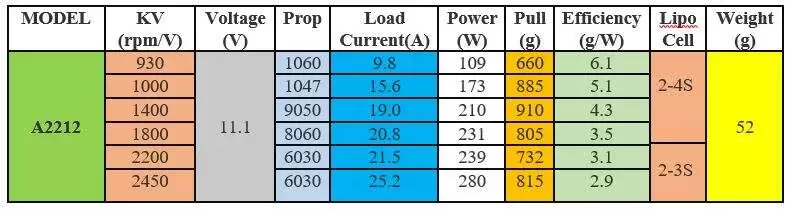

Specifications
- Number of Cells: 2-3s lipo; 6-10 cell NiMh (2V to 12V)
- Max Efficiency: 80%
- Internal Resistance: 90mΩ
- Max Current: 12A/60s
- Max Watts: 239 W
- Load Current: 21.5A
- Shaft Size: 3.17mm

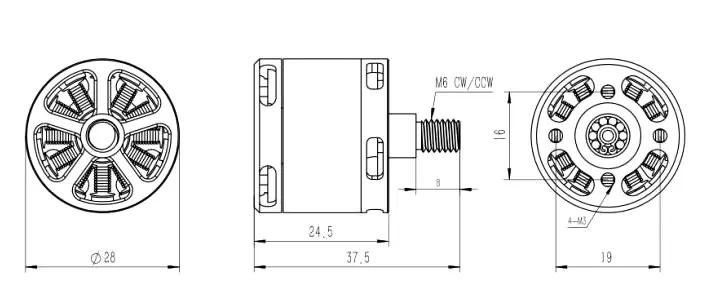

- Dimensions: 27.5×30 (mm)
- Minimum Recommended ESC: 18A
- Recommended Model Weight: 300-1000g
Package Included:
1 x Brushless Motor 2200KV (Without Any Accessories)
