Features
- Medium current Triac
- Low thermal resistance with clip bonding
- Low thermal resistance insulation ceramic for insulated BTA
- Insulated tab (BTA series, rated at 2500 VRMS)
Applications of the triac’s:
- On and off function in static relays, heating regulation, and starting circuits of induction motors.
- Phase control operations on light dimmers, motor speed controllers, and the like.
Technical Specifications
| Physical | |

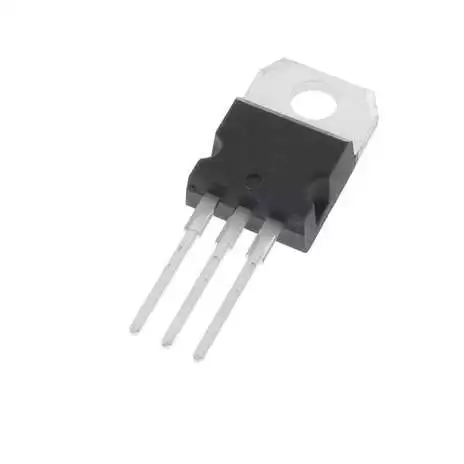

| Case/Package | TO-220AB |
| Contact Plating | Tin |
| Mount | Through Hole |
| Number of Pins | 3 |
| Technical | |
| Current Rating | 16 A |
| Element Configuration | Single |
| Hold Current | 50 mA |
| Max Operating Temperature | 125 °C |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Max RMS Current | 16 A |
| Min Operating Temperature | -40 °C |
| Peak Non-Repetitive Surge Current | 160 A |
| RMS Current (Irms) | 16 A |
| Voltage Rating (DC) | 600 V |
