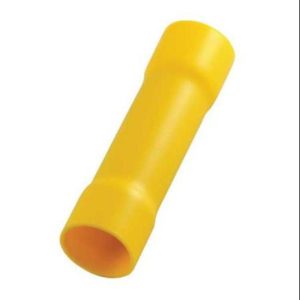

Insulated Butt Crimp Connectors 10 Pcs
These fully insulated butt connectors are crafted with tin-plated copper conductive tubes and durable PVC sleeves. They allow wires to be crimped into both ends, forming a mechanically secure and electrically reliable splice. Color-coded by size for quick identification, these connectors are rated for standard voltages and temperatures and are ideal for environments requiring vibration resistance and corrosion protection.
Features
- Tin-plated copper tube ensures excellent conductivity and corrosion resistance.
- PVC insulation provides electrical protection and strain relief.
- Color-coded sleeves for easy size recognition—red, blue, and yellow.
- Rated operating temperature up to +75 °C, suitable for typical indoor use.
- Simple crimp installation—ideal for fast, tool-based wire repairs and splices.
Specifications
| Model | Wire Range | Tube I.D. | Length | Max Current | Color |
|---|---|---|---|---|---|
| BV1.25 | 0.5–1.5 mm² (22–16 AWG) | 1.7 mm | 26 mm | 19 A | Red |
| BV2 | 1.5–2.5 mm² (16–14 AWG) | 2.3 mm | 26 mm | 27 A | Blue |
| BV5.5 | 4.0–6.0 mm² (12–10 AWG) | 3.4 mm | 26 mm | 48 A | Yellow |
Applications
- Splicing wires in automotive harnesses, motorcycles, and RVs.
- Electrical appliance and household wiring repairs.
- Modules and panel installations in industrial controls.
- Audio systems, lighting circuits, and general wiring tasks.
Package Contents
- 10× Insulated Butt Crimp Connectors (of selected size).
