BYT16P-400 Diode Array 1 Pair Common Cathode 400V 16A Through Hole TO-220-3
The BYT16P-400 Diode Array 1 Pair Common Cathode 400V 16A Through Hole TO-220-3 is a metallized fast-recovery dual rectifier in a TO-220AB through-hole package with a common-cathode configuration, engineered for high-efficiency power conversion and robust switching applications where low forward voltage, high surge capability, and rapid reverse-recovery are required.
Features
- Fast-recovery dual rectifier configuration for reduced switching losses and improved efficiency.
- Common-cathode pair in a single TO-220AB package for compact dual-diode implementations.
- High average forward current rating for continuous power handling.
- High surge and non-repetitive current capability for transient tolerance.
- Low forward voltage drop for reduced conduction losses.
- Short reverse-recovery time to minimise EMI and switching stress.
- Defined thermal resistances and tight thermal coupling for predictable thermal design.
- Robust epoxy-molded package suitable for through-hole mounting and heatsinking.
Specifications
ABSOLUTE RATINGS (limiting values, per diode)
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VRRM | Repetitive peak reverse voltage | 400 | V |
| IFRM | Repetitive peak forward current (tp = 5µs, F = 1kHz) | 300 | A |
| IF(RMS) | RMS forward current | 30 | |
| IF(AV) | Average forward current (TC = 100°C, δ = 0.5) | 16 | |
| IFSM | Surge non repetitive forward current (tp = 10 ms, sinusoidal) | 100 | |
| Tstg | Storage temperature range | -40 to +150 | °C |
| Tj | Maximum operating junction temperature | 150 |

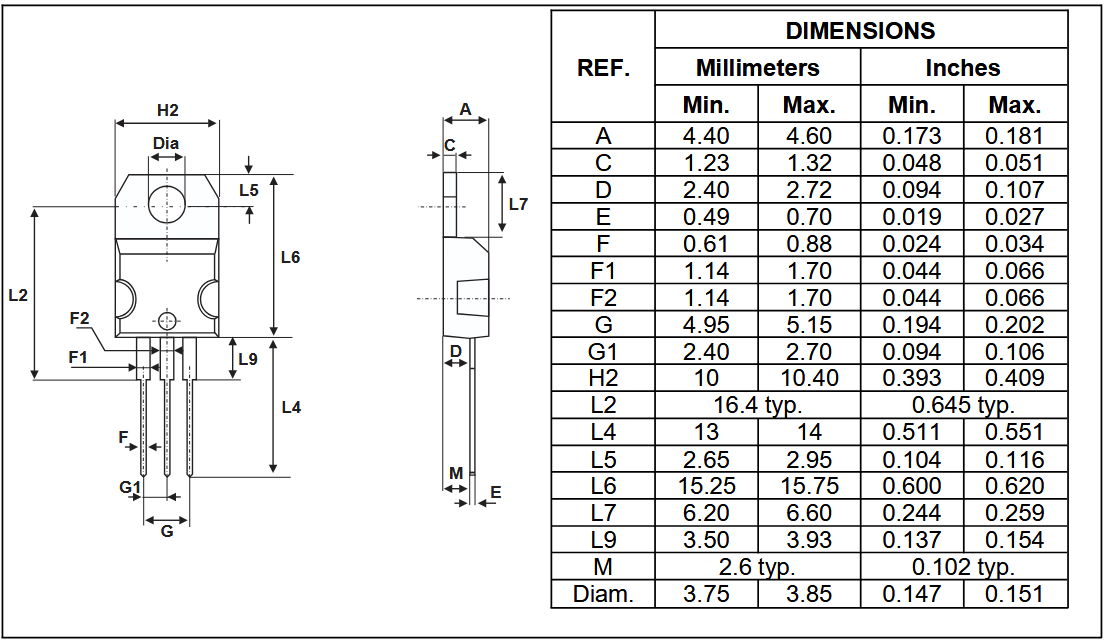

Dimensions
PINOUT
Applications
- Fast recovery rectification in switch-mode power supplies and converters.
- Free-wheeling and snubber diodes in motor drives and inverters.
- High-frequency power rectification in telecommunications equipment.
- Transient clamp and protection circuits for inductive loads.
- General-purpose dual-diode solutions requiring common-cathode topology.
