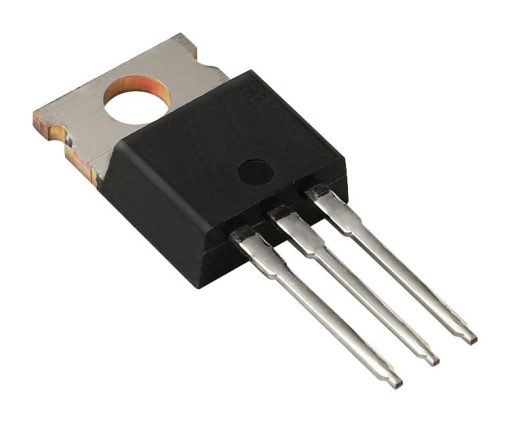

BYV42-200 Diode Array 1 Pair Common Cathode
The BYV42-200 is a dual ultrafast soft recovery rectifier diode designed for high-frequency and high-power applications. It features a common cathode configuration, making it ideal for use in circuits requiring efficient rectification and fast switching. Housed in a TO-220 package, this diode is designed for through-hole mounting, ensuring ease of installation and robust mechanical stability. The BYV42-200 is known for its rugged design and ability to handle demanding conditions, such as high thermal cycling and reverse surge currents. Its ultrafast switching capabilities and soft recovery characteristics minimize electromagnetic interference (EMI), making it a reliable choice for power electronics.
Features
- Ultrafast Switching Speed: Reverse recovery time of 28ns ensures efficient operation in high-frequency circuits.
- Soft Recovery Characteristic: Reduces electromagnetic interference (EMI), enhancing overall system performance.
- High Surge Current Capability: Handles surge currents up to 150A, providing protection in high-stress conditions.
- Low Forward Voltage Drop: Typically 0.85V at 15A, improving efficiency by reducing power loss.
- Rugged Design: Built for high thermal cycling performance and reverse surge capability, ensuring long-term reliability.
Specifications
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (Vrrm) | 200V |
| Average Rectified Forward Current (If(AV)) | 30A (total), 15A per diode |
| Forward Voltage Drop (Vf) | 0.85V (typical), 1.05V (max) at If = 15A |
| Reverse Recovery Time (trr) | 28ns |
| Maximum Reverse Current (Ir) | 1mA at Vr = 200V |
| Surge Forward Current (Ifsm) | 150A |
| Junction Temperature (Tj) | -40°C to +150°C |
| Package Type | TO-220 |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Diode Configuration | Dual Common Cathode |
| Diode Type | Soft Recovery Rectifier |
Applications
- High-Frequency Switched-Mode Power Supplies (SMPS): Ideal for efficient power conversion due to ultrafast switching and low forward voltage drop.
- Freewheeling Diodes in Power Converters: Enhances efficiency and provides protection in converter circuits.
- Rectifiers in High-Speed Switching Circuits: Ensures minimal switching losses and reliable operation.
- Snubber Circuits: Reduces voltage spikes and ringing in inductive load circuits.
- Reverse Polarity Protection: Safeguards sensitive components from damage due to incorrect power connections.
