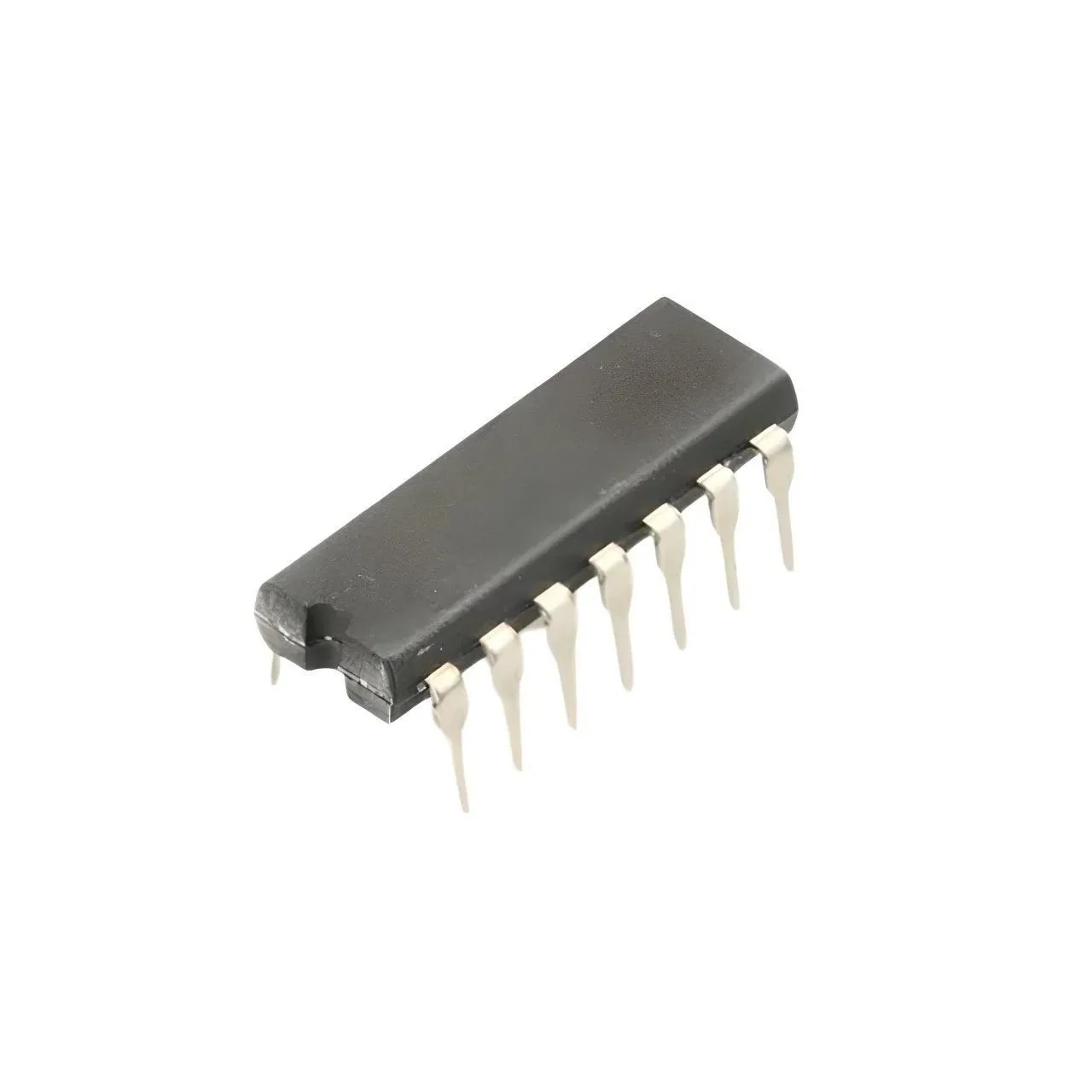

CA3086 NPN Transistor Array, 14-Pin
The CA3086 NPN Transistor Array, 14-Pin is a versatile, general-purpose silicon transistor array designed for use in a wide variety of electronic applications. It features five NPN transistors on a single monolithic substrate, two of which are internally configured as a differentially connected pair. This compact arrangement allows for space-saving in designs while maintaining high performance in both low and high-frequency environments. The device can operate across a broad temperature range from -55°C to 125°C, making it suitable for a variety of industrial and consumer applications.
Features:
- The array consists of five general-purpose silicon NPN transistors on a common monolithic substrate.
- Two of the transistors are internally connected to form a differentially connected pair.
- It offers inherent advantages of integrated circuits, such as compactness and thermal matching.
- The device is suitable for a wide variety of applications in low-power systems.
- It is designed for operation at frequencies from DC up to 120MHz.
Specifications:
| Component Type | General Purpose NPN Transistor Array |
| Number of Transistors | 5 |
| Collector-to-Emitter Voltage (V<sub>CEO</sub>) | 15 V |
| Collector-to-Base Voltage (V<sub>CBO</sub>) | 20 V |
| Collector Current (I<sub>C</sub>) | 50 mA |
| Max. Power Dissipation (per transistor) | 300 mW |
| Operating Temperature Range | -55°C to +125°C |
| DC Current Gain (h<sub>FE</sub>) Min. | 40 (at V<sub>CE</sub>=3V, I<sub>C</sub>=1mA) |
| Gain-Bandwidth Product (f<sub>T</sub>) Typ. | 550 MHz (at V<sub>CE</sub>=3V, I<sub>C</sub>=3mA) |
| Package Type | 14-Lead PDIP, 14-Lead SOIC |
Pin Configuration:
Applications:
- Power applications from DC to 120MHz.
- General-purpose use in signal processing systems.
- Temperature-compensated amplifiers.
- Integrated circuit designs requiring multiple NPN transistors.
Package Include:
1x CA3086 NPN Transistor Array, 14-Pin
