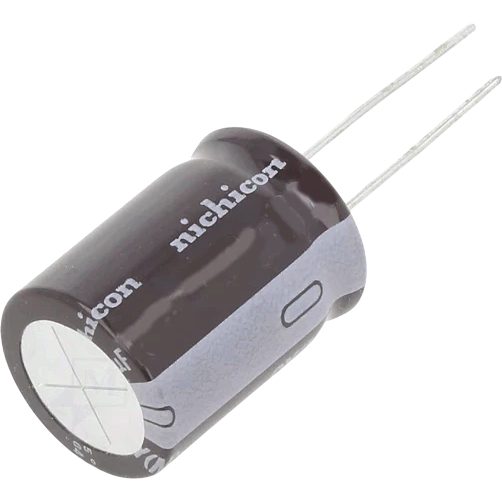

Capacitor 120uF 450V
The 120uF 450V capacitor is an aluminum electrolytic component engineered for demanding industrial and commercial applications. IT delivers exceptional ripple current handling and long-term stability in high-voltage circuits, making it ideal for power supply stabilization and energy buffer systems. Its robust construction features an oxide-layer dielectric and non-solid electrolyte, optimized for operation in environments up to 105°C. The radial design with dual axial leads ensures straightforward PCB mounting and vibration resistance.
Features:
- High capacitance of 120µF at 450VDC for effective energy storage.
- Long operational life of 10,000 hours at 105°C with ripple current.
- Compact radial design with dimensions of 18mm diameter by 31.5mm length.
- Wide operating temperature range from -25°C to +105°C.
Specifications:
- Capacitance: 120uF
- Voltage: 450V
- Tolerance: 20%
- Diameter: 18mm
- Height: 31mm
- Lead Spacing: 6.5mm
- Mounting: Through Hole
- Lead/Terminal Type: Radial
- Number Leads/Terminals: 2
- Temperature: 105℃
- Shape: Round (Cylindrical)
Applications:
- Used in filtering applications to reduce the ripple in the power supplies/
- Used as a low pass filter to smoothen the input and output signals.
- Used in audio amplification circuits as filters to reduce hum.
- Used in electronic circuits for coupling, decoupling bypass and filtering.
- Electrolytic Capacitor is ideal for crossover networks, speaker boxes and other audio projects.
- Used to achieve high capacitance value.
- Used in low-frequency applications.
Package Include:
1x Capacitor 120uF 450V.
