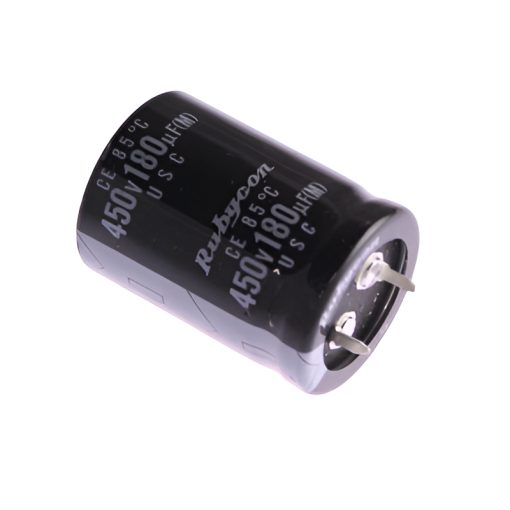

Capacitor 180µF 450V
This high-performance aluminum electrolytic capacitor features a 180 µF capacitance with ±20 % tolerance and is rated for 450 V DC. Housed in a robust 25 mm diameter × 40 mm snap-in package, it delivers low ESR (~0.57 Ω), high ripple current (~1.45 A), and a long operational life of approximately 5 000 hours at 85 °C, making it well-suited for SMPS, inverters, UPS systems, and other industrial converters
Features
- 180 µF capacitance with ±20 % tolerance.
- 450 VDC voltage rating for high-voltage circuits.
- Endurance of 5,000 h at 105 °C for long life.
- High ripple-current capacity.
- Low-impedance design to minimize power loss and heat.
- Operating temperature range from –40 °C to +105 °C.
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 180 µF ±20 % |
| Rated Voltage | 450 V DC |
| Package | Snap‑in, 25 mm diameter × 40 mm height |
| ESR | ~0.57 Ω |
| Ripple Current | ~1.45 A |
| Operating Temp Range | –40 °C to +85 °C |
| Service Life | ~5 000 h @ 85 °C |
| Tolerance | ±20 % |
Applications
- Smoothing and filtering in high-voltage SMPS and industrial converters.
- Energy storage for inverters, UPS systems, and servo drives.
- EMI suppression in lighting and projection equipment.
- Power buffering in welding machines, transformers, and medical devices.
Package Contents
- 1x Capacitor 180 µF 450 V.
