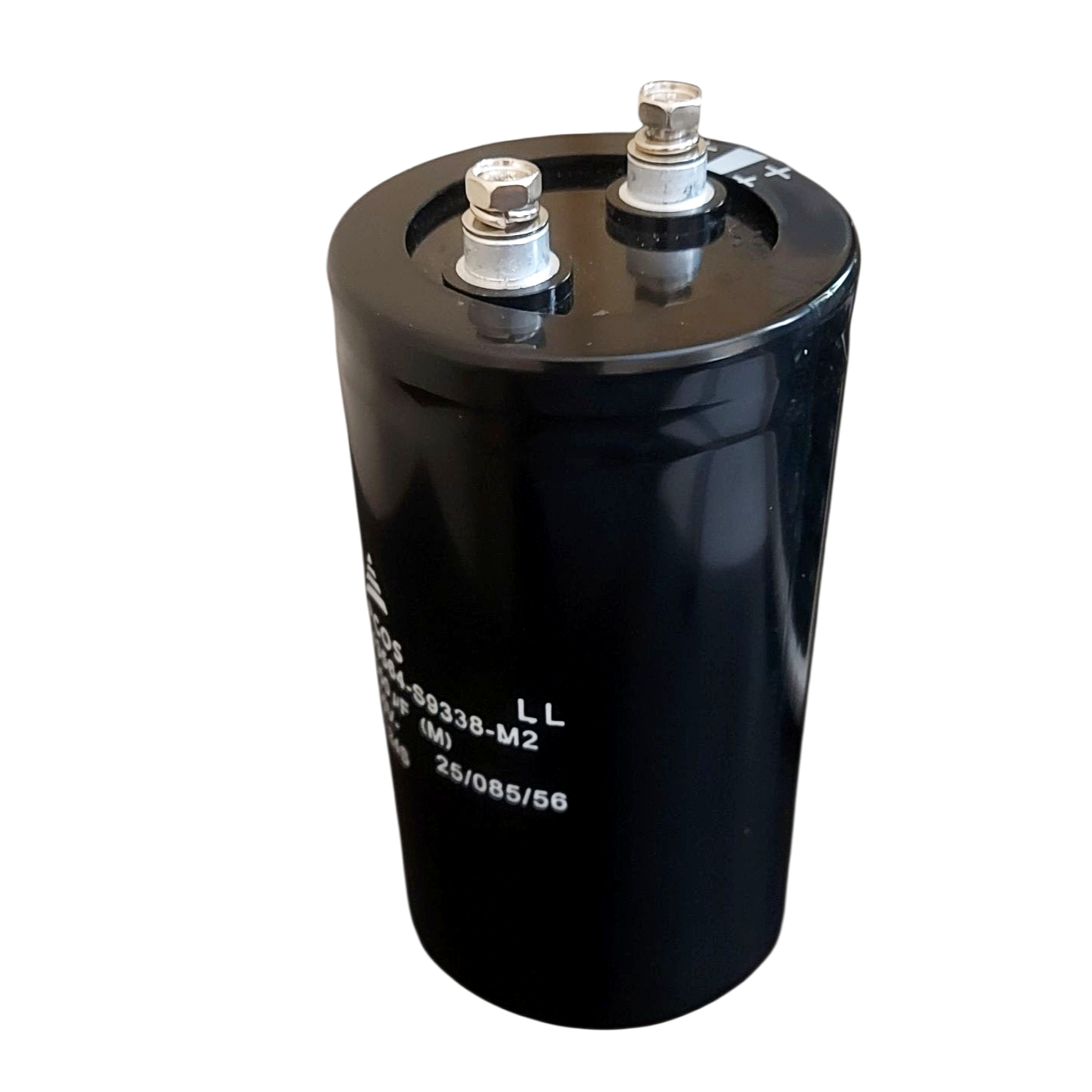

Epcos B43564-S9338-M2 Aluminium Electrolytic Capacitor 3300uF 400V Screw Terminal
The Epcos B43564-S9338-M2 is a high-performance aluminum electrolytic capacitor designed for demanding industrial and power electronics applications. This capacitor features a robust construction with screw terminals for secure connections and reliable performance in high-voltage circuits. With a capacitance of 3300µF at 400V, it provides substantial energy storage capability for filtering, smoothing, and energy buffering applications. The black cylindrical case design ensures durability and excellent heat dissipation, making it ideal for continuous operation in industrial environments.
Features
- High Capacitance Value: 3300µF
- High Voltage Rating: 400V DC
- Screw Terminal Connection
- Long Service Life
- Robust Construction
Specifications
| Technical Specifications | |
|---|---|
| General Information | |
| Manufacturer | EPCOS |
| Part Number | B43564-S9338-M2 |
| Series | B43564 |
| Type | Aluminum Electrolytic Capacitor |
| Electrical Characteristics | |
| Capacitance | 3300µF ±20% |
| Rated Voltage | 400V DC |
| Operating Temperature Range | -25°C to +85°C |
| Physical Characteristics | |
| Case Material | Aluminum with black coating |
| Terminal Type | Screw Terminals |
| Terminal Configuration | 2-pin Radial |
| Mounting Type | Upright/Vertical |
| Diameter | 66 mm |
| Height | 128 mm |
| Weight | 445 g |
Applications
- Power Supply Systems
- Motor Drive Applications
- Industrial Equipment
- Energy Storage
