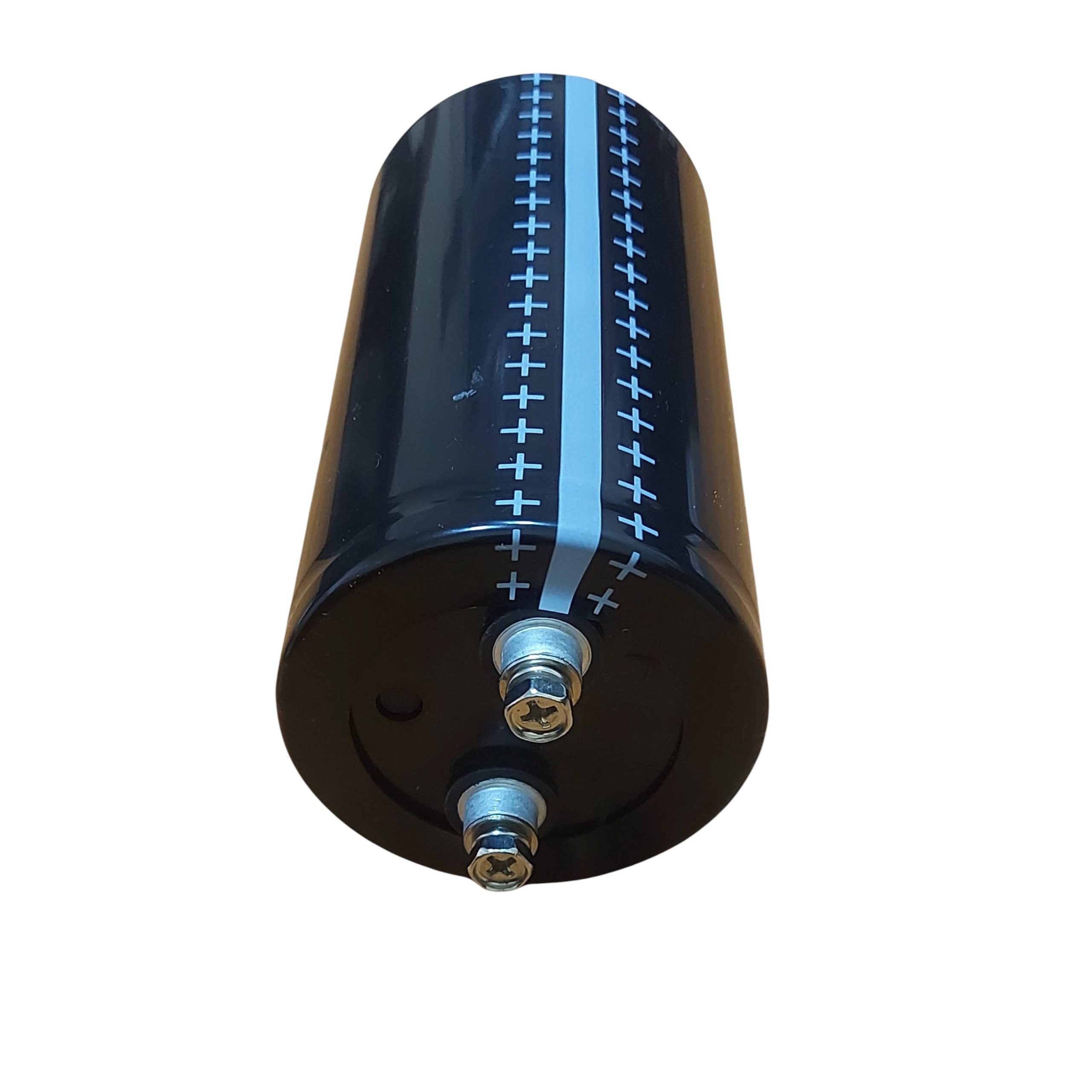

JAMICON Aluminium Electrolytic Capacitor 4700uF 400V Screw Terminal
This high-capacity JAMICON aluminum electrolytic capacitor is designed for demanding industrial and power supply applications. Featuring a robust 4700µF capacitance rating at 400VDC, this screw terminal capacitor delivers reliable energy storage and filtering capabilities for heavy-duty electronic circuits. The capacitor utilizes high-quality aluminum electrolytic construction with screw terminals for secure, vibration-resistant connections in industrial environments.
Features
- High Capacitance Value: 4700µF
- High Voltage Rating: 400VDC
- Screw Terminal Connection
- Polarized Design
- Robust Construction
- Temperature Stable: 85°C rated for reliable operation in warm environments
Specifications
| Capacitance | 4700µF ±20% |
| Rated Voltage | 400VDC |
| Temperature Rating | 85°C (185°F) |
| Terminal Type | Screw Terminal |
| Dimensions | 64 x 143 mm |
| Operating Temperature | -40°C to +85°C |
| Life Expectancy | 2000 hours @ 85°C |
| Polarity | Polarized (Positive + marked) |
| Weight | 600 g |
Applications
- Power Supply Systems
- Motor Control & Drives
- Industrial Equipment
- Renewable Energy
