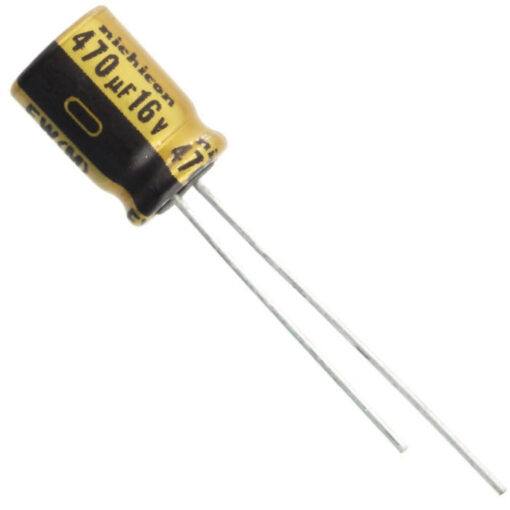

Capacitor 470uF 16V – 10x18mm
The 470µF 16V capacitor (10x13mm) is a small yet powerful electrolytic component designed for various electronic applications. Despite its compact size, it is highly effective at storing and releasing energy when needed, making it a crucial element in many circuits. With a capacitance of 470 microfarads and a rated voltage of 16 volts, this polarized capacitor is ideal for moderate voltage applications. It requires proper orientation during installation to function effectively.
This capacitor is well-suited for use in space-constrained designs due to its small dimensions, making it a great choice for portable electronics and compact power supplies. While small, it offers sufficient capacitance for smoothing out voltage ripple and ensuring a stable voltage in power supply circuits. It is used to temporarily store energy and maintain stability in circuits that demand consistent performance.
The 470µF 16V capacitor plays a vital role in improving the efficiency and reliability of electronic systems. Whether used to enhance audio quality by filtering out noise in sound systems or to stabilize power in circuits, it remains a reliable component in various designs. Its durability and ability to store energy efficiently make it an excellent choice for applications that need quick bursts of power or steady energy supply, ensuring smooth operation in sensitive electronics.
Features:
- High Energy Storage: Offers substantial energy storage capacity, making it effective in smoothing power supplies and reducing voltage fluctuations.
- Compact Design: Small size allows it to fit easily in tight spaces, ideal for portable and space-constrained electronic devices.
- Reliable Performance: Delivers consistent performance over time, ensuring long-lasting stability in electronic circuits.
- Enhanced Efficiency: Helps improve the efficiency of circuits by reducing ripple and noise in power supplies and ensuring stable voltage.
- Noise Filtering: Effectively filters high-frequency noise, helping to ensure clean power supply for sensitive components like microcontrollers and audio equipment.
- Quick Response to Voltage Changes: Can quickly respond to voltage changes, providing bursts of power when needed in energy storage applications.
- Durability in Various Conditions: Suitable for a wide range of temperatures and operating conditions, offering reliable performance even in challenging environments.
- Long Lifespan: Built to withstand prolonged usage and high-frequency operations, ensuring a long service life.
- Cost-Effective Solution: Provides a high-capacity solution for moderate voltage applications at a relatively low cost, making it an economical choice for many designs.
Specifications:
| Specification | Value |
|---|---|
| Capacitance: | 470 µF |
| Rated Voltage: | 16 V DC |
| Capacitance Tolerance: | ±20% |
| Polarity: | Polarized (positive and negative terminals) |
| Equivalent Series Resistance (ESR): | 0.1 – 0.2 Ω |
| Ripple Current: | ~1.0 – 1.5 A |
| Operating Temperature Range: | -40°C to +85°C |
| Lead Type: | Radial (leads from one end) |
| Dimensions: | 10 mm (Diameter) x 13 mm (Height) |
| Leakage Current: | ≤ 3 mA or 0.01CV or 3 µA (whichever is greater) |
| Mounting Style: | Through-hole |
Applications:
- Power Supply Filtering.
- Decoupling and Bypass.
- Energy Storage.
- Audio Circuits.
- Voltage Stabilization.
- Timing and Oscillator Circuits.
- Signal Coupling and Capacitive Coupling.
- Power Supply Decoupling for Digital Circuits.
- Inrush Current Limiting.
- Battery-Powered Devices.
Package Included:
- 1x Capacitor 470uF 16V
