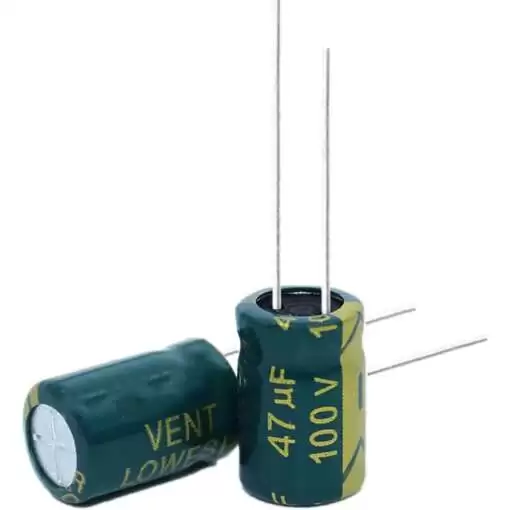

Capacitor 47uF 100V

The Electrolytic Capacitors have polarity. Meaning they have a positive and negative pin. The long pin is the positive pin and the short pin is the negative pin. You can also identify the polarity using the negative strip on the capacitor label. As shown in the picture above the negative pin will be directly under the negative symbol.

Specifications:

• Capacitance Value: 47uF
• Voltage Rating: 100V
• Tolerance: ±20%
• Max Temperature: -40~+105°C
• Capacitor Type: Radial Aluminium Electrolytic
• Mounting Type: Through Hole
• Lead Spacing pitch: 5mm
• Diameter: 10mm
• Height: 13mm
